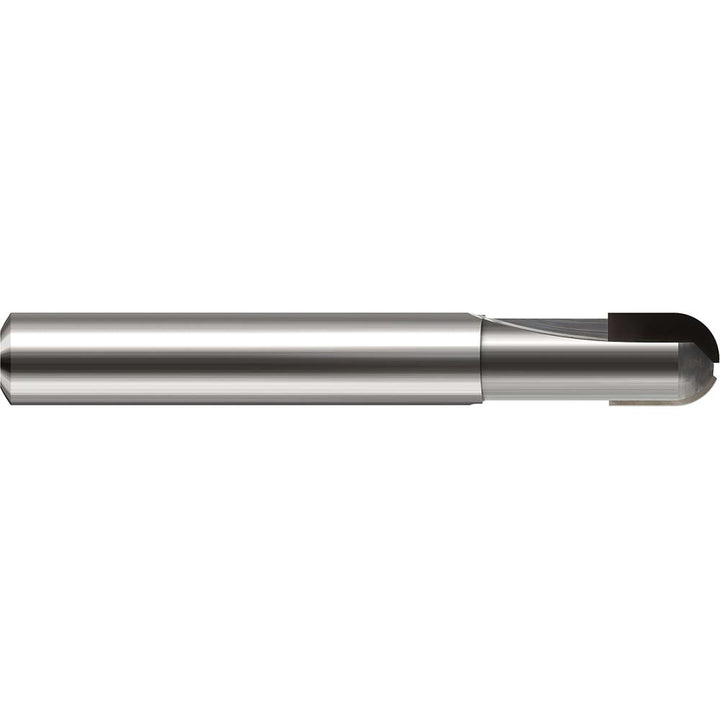

1/4in" 2-Flute Polycrystalline Diamond Ball End Mill, Diamond - Harvey Tool 12016
MFR# 12016Series Diamond End Mills for Non-Ferrous Materials - PCD Diamond - Ball, Material Specific End Mills
$526.87List $615.12
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4in
Flutes2
MaterialPolycrystalline Diamond
CoatingDiamond
Description
The Harvey Tool 12016 is a 1/4in 2-flute Polycrystalline Diamond ball end mill. Suited for non-ferrous metal, plastic, graphite, carbon fiber. 5/16 length of cut, 2-1/2in overall length. Series Diamond End Mills for Non-Ferrous Materials - PCD Diamond - Ball, Material Specific End Mills.
Specifications
ChipbreakerNo
Coating finishDiamond
Coolant throughNo
Cutting directionRight Hand
End mill materialPolycrystalline Diamond
Extended reachYes
Flute directionRight Hand
Flute typeStraight
Helix angle0
Helix styleLow
Length of cut in5/16
Length typeStub
Manufacturers catalog number12016
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.4380
Nose radius0.1250
Number of flutes2
Overall length in2-1/2in
Primary workpiece materialNon-Ferrous Metal; Plastic; Graphite; Carbon Fiber
Reach length in3/4
Shank diameter in1/4in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
