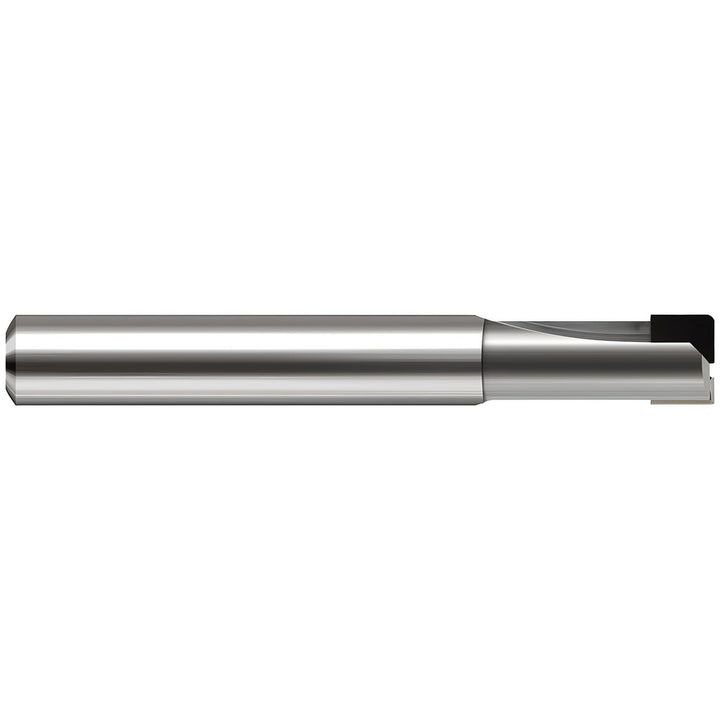

1/2in" 2-Flute Solid Carbide Corner Radius End Mill, PCD - Harvey Tool 12232

Harvey Tool

1/2in" 2-Flute Solid Carbide Corner Radius End Mill, PCD - Harvey Tool 12232

MFR# 12232Series Diamond End Mills for Non-Ferrous Materials - PCD Diamond - Corner Radius; Material Specific End Mills

$754.98List $881.43 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes2
MaterialSolid Carbide
CoatingPCD

Description

The Harvey Tool 12232 is a 1/2in 2-flute Solid Carbide corner radius end mill with a PCD finish for longer tool life. Suited for non-ferrous metal, non-iso. 1/4in length of cut, 3in overall length. Series Diamond End Mills for Non-Ferrous Materials - PCD Diamond - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishPCD
Coolant throughNo
Corner radius0.0300
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut in1/4in
Length typeExtended
Material applicationAluminum; Wood; Composite; Graphite
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance0.0000/-0.0020 in
Number of flutes2
Overall length in3in
Overall length tolerance0.0100/-0.0000 in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal; Non-ISO
Reach length in1
Shank diameter in1/2in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
