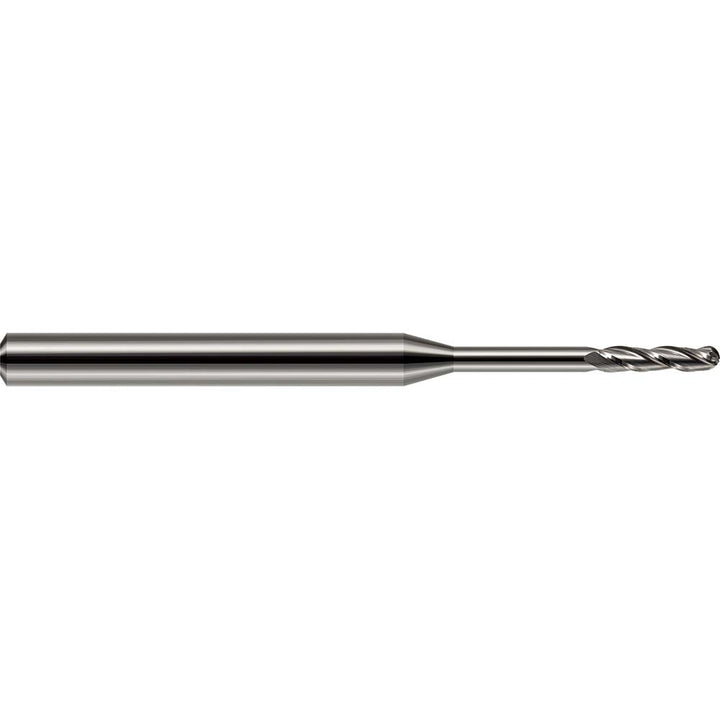

3/64" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 13847

Harvey Tool

3/64" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 13847

MFR# 13847Series Miniature End Mills - Ball - Long Reach, Long Flute, Miniature End Mills

$50.13List $53.35 Save 6%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/64
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Harvey Tool 13847 is a 3/64 3-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal. 1/4 length of cut, 2-1/2 overall length. Series Miniature End Mills - Ball - Long Reach, Long Flute, Miniature End Mills.

Specifications

ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/4
Length typeLong
Manufacturers catalog number13847
Material gradeCarbide
Material removal typeFinishing
Mill diameter in3/64
Mill diameter tolerance+0.0005/-0.0005 in
Neck length in1/4
Nose radius0.0235
Number of flutes3
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Reach length in1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
