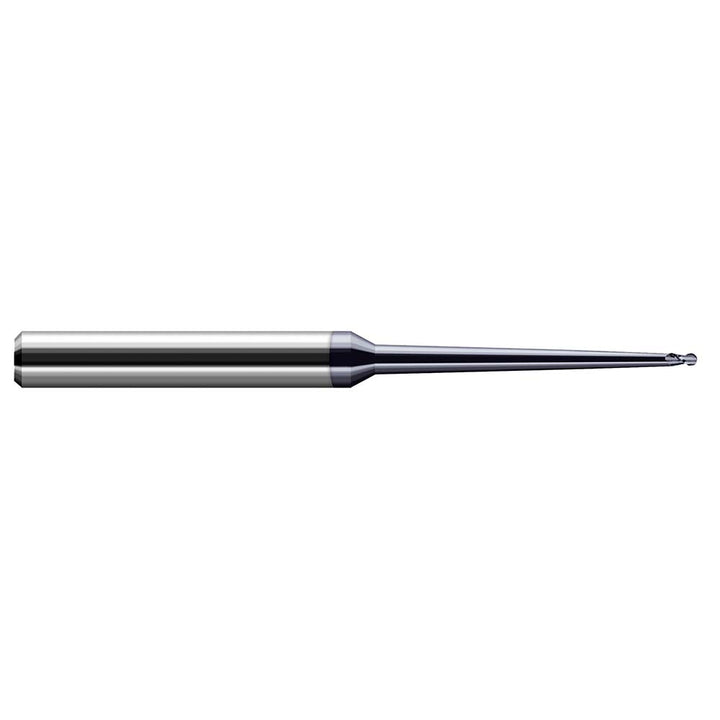

3/32" 2-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 18893-C6

Harvey Tool

3/32" 2-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 18893-C6

MFR# 18893-C6Series Miniature End Mills - Ball - Tapered Reach (Clearance Cutters), Miniature End Mills

$133.57List $153.23 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes2
MaterialSolid Carbide
CoatingAlTiN Nano

Description

The Harvey Tool 18893-C6 is a 3/32 2-flute Solid Carbide (Carbide) ball end mill with a AlTiN Nano finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 9/64 length of cut, 4in overall length. Series Miniature End Mills - Ball - Tapered Reach (Clearance Cutters), Miniature End Mills.

Specifications

ChipbreakerNo
Coating finishAlTiN Nano
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in9/64
Length typeStub
Manufacturers catalog number18893-C6
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/32
Mill diameter tolerance+0.0000/-0.0010 in
Neck length1.8600
Nose radius0.0465
Number of flutes2
Overall length in4in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length in2
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
