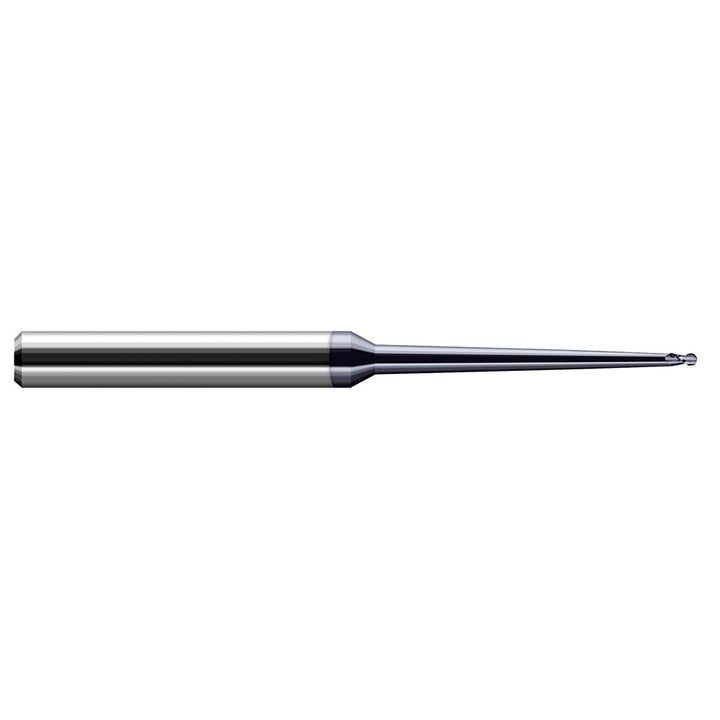

1/8in" 2-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 21408-C6

Harvey Tool

1/8in" 2-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 21408-C6

MFR# 21408-C6Series Miniature End Mills - Ball - Tapered Reach (Clearance Cutters), Miniature End Mills

$109.64List $116.69 Save 6%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8in
Flutes2
MaterialSolid Carbide
CoatingAlTiN Nano

Description

The Harvey Tool 21408-C6 is a 1/8in 2-flute Solid Carbide (Carbide) ball end mill with a AlTiN Nano finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 4in overall length. Series Miniature End Mills - Ball - Tapered Reach (Clearance Cutters), Miniature End Mills.

Specifications

ChipbreakerNo
Coating finishAlTiN Nano
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length typeStub
Manufacturers catalog number21408-C6
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/8in
Mill diameter tolerance+0.0000/-0.0010 in
Neck length2.3120
Nose radius0.0625
Number of flutes2
Overall length in4in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length in2-1/2
Shank diameter in5/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
