Harvey Tool

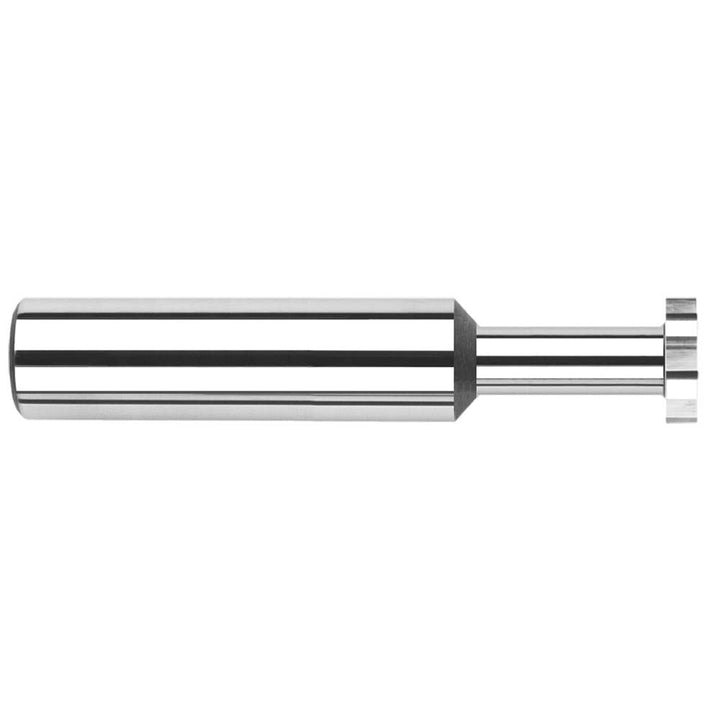

Woodruff/Keyseat Cutters & Sets - Harvey Tool 22231
MFR# 22231
$64.73List $75.57
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.3/16
Description
The Harvey Tool 22231 woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron.
Specifications
Connection typeShank
Cutter diameter in3/16
Cutter materialSolid Carbide
Cutting width in1/32
Neck diameter0.0930
Neck length0.2810
Number of teeth6
Overall length in2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/16
Tooth configurationStraight
Weldon flatNo
