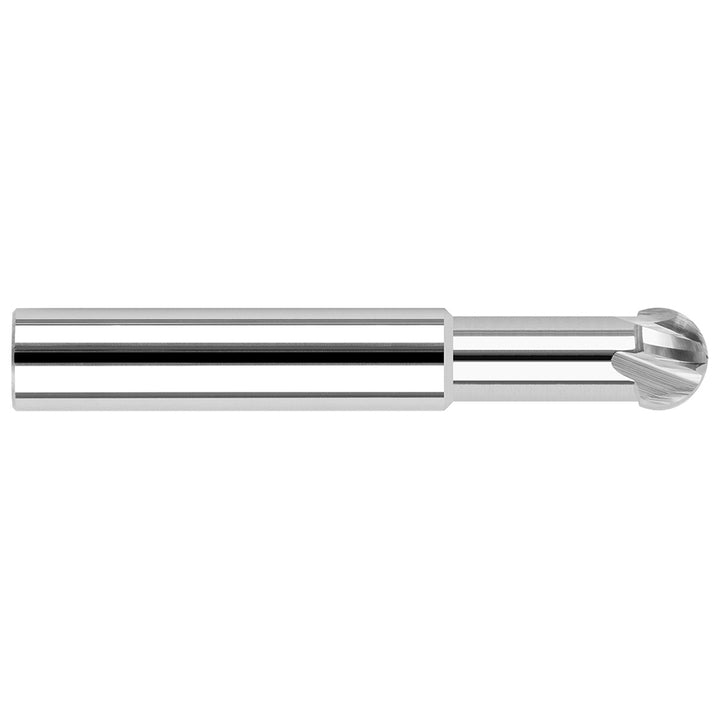

5/16" 4-Flute Solid Carbide Undercutting End Mill - Harvey Tool 22820

Harvey Tool

5/16" 4-Flute Solid Carbide Undercutting End Mill - Harvey Tool 22820

MFR# 22820

$92.67List $98.63 Save 6%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Harvey Tool 22820 is a 5/16 4-flute Solid Carbide undercutting end mill. 2-1/2 overall length.

Specifications

Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut0.2100
Mill diameter in5/16
Neck diameter0.2350
Neck length0.7500
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Single or double endSingle
Variable helixNo
Variable indexNo
Wrap angle degrees220
