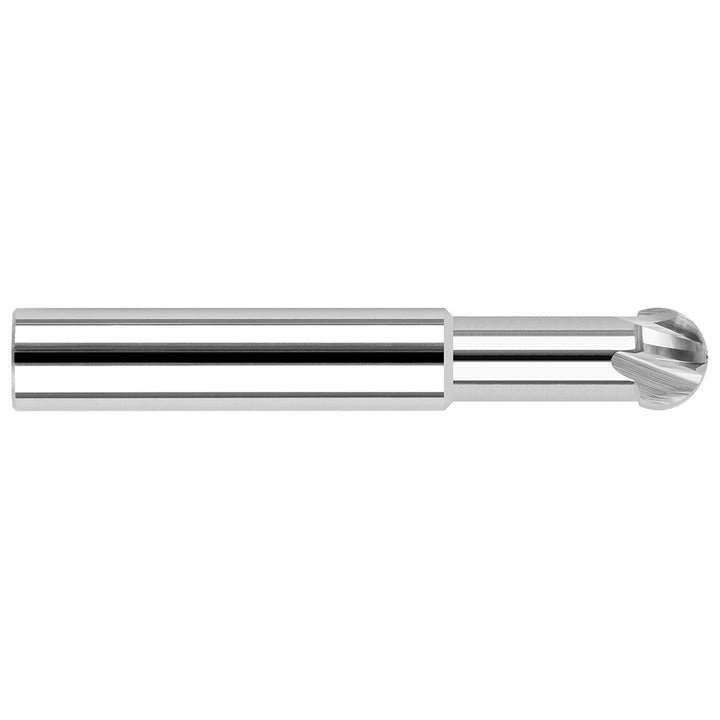

1/8" 4-Flute Solid Carbide Undercutting End Mill - Harvey Tool 22908

Harvey Tool

1/8" 4-Flute Solid Carbide Undercutting End Mill - Harvey Tool 22908

MFR# 22908

$51.93List $55.28 Save 6%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Harvey Tool 22908 is a 1/8 4-flute Solid Carbide undercutting end mill. 3 overall length.

Specifications

Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut0.0840
Mill diameter in1/8
Neck diameter0.0940
Neck length1.0000
Number of flutes4
Overall length in3
Shank diameter in1/8
Single or double endSingle
Variable helixNo
Variable indexNo
Wrap angle degrees220
