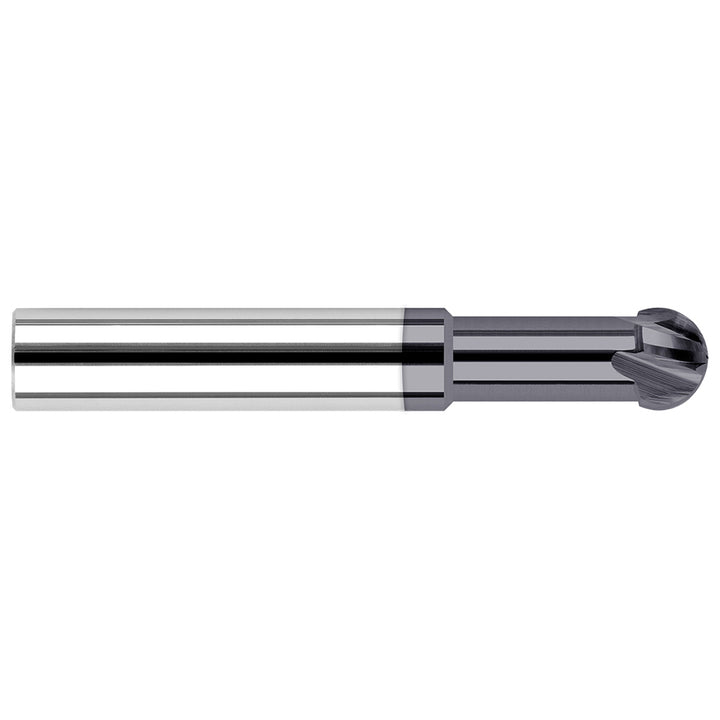

1/2" 4-Flute Solid Carbide Undercutting End Mill, AlTiN - Harvey Tool 22932-C3

Harvey Tool

1/2" 4-Flute Solid Carbide Undercutting End Mill, AlTiN - Harvey Tool 22932-C3

MFR# 22932-C3

$244.64List $265.00 Save 7%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 22932-C3 is a 1/2 4-flute Solid Carbide undercutting end mill with a AlTiN finish for longer tool life. 6 overall length.

Specifications

Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut0.3360
Mill diameter in1/2
Neck diameter0.3750
Neck length2.0000
Number of flutes4
Overall length in6
Shank diameter in1/2
Single or double endSingle
Variable helixNo
Variable indexNo
Wrap angle degrees220
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
