Harvey Tool

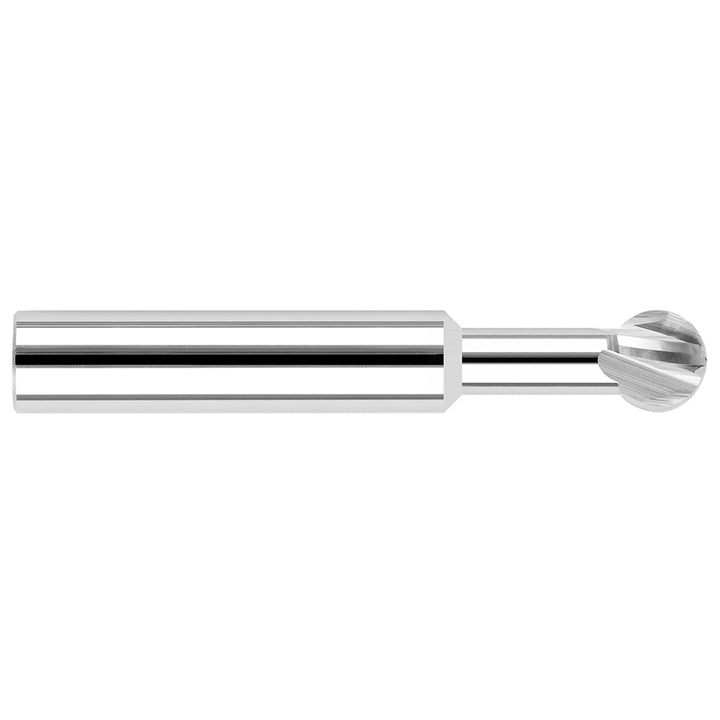

1/4" 4-Flute Solid Carbide Undercutting End Mill - Harvey Tool 23116
MFR# 23116
$80.08List $93.50
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
Description
The Harvey Tool 23116 is a 1/4 4-flute Solid Carbide undercutting end mill. 2-1/2 overall length.
Specifications
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut0.2130
Mill diameter in1/4
Neck diameter0.1580
Neck length0.1250
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Single or double endSingle
Variable helixNo
Variable indexNo
Wrap angle degrees270
