Harvey Tool

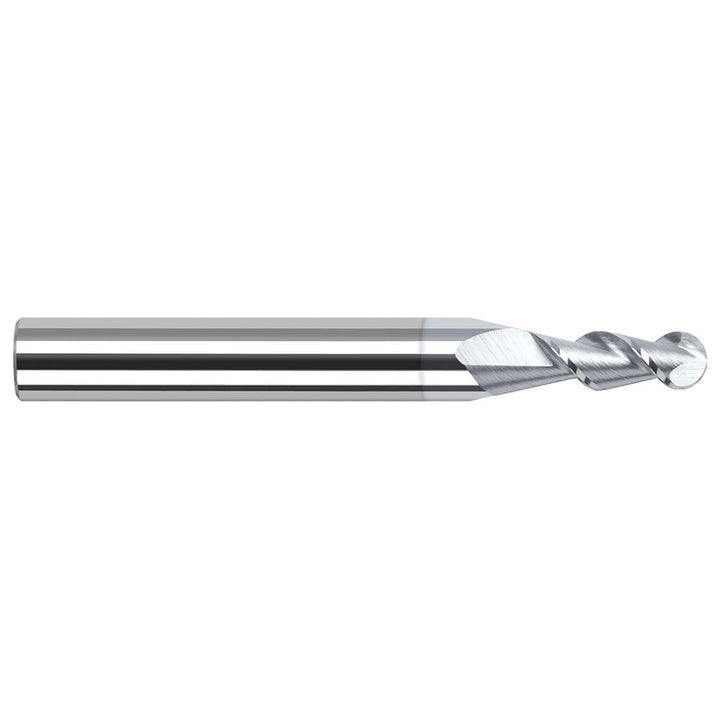

1/16" 2-Flute Solid Carbide Ball End Mill, TiB2 - Harvey Tool 27862-C8
MFR# 27862-C8Series High Helix End Mills for Aluminum Alloys - 45 Helix - Ball, Material Specific End Mills
$46.17List $53.90
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16
Flutes2
MaterialSolid Carbide
CoatingTiB2
Description
The Harvey Tool 27862-C8 is a 1/16 2-flute Solid Carbide (Carbide) ball end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 1-1/2in overall length. Series High Helix End Mills for Aluminum Alloys - 45 Helix - Ball, Material Specific End Mills.
Specifications
ChipbreakerNo
Coating finishTiB2
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Helix styleHigh
Length typeStandard
Manufacturers catalog number27862-C8
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/16
Mill diameter tolerance+0.0005/-0.0005 in
Nose radius0.0310
Number of flutes2
Overall length in1-1/2in
Primary workpiece materialNon-Ferrous Metal
Reach length0.1860
Shank diameter in1/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
