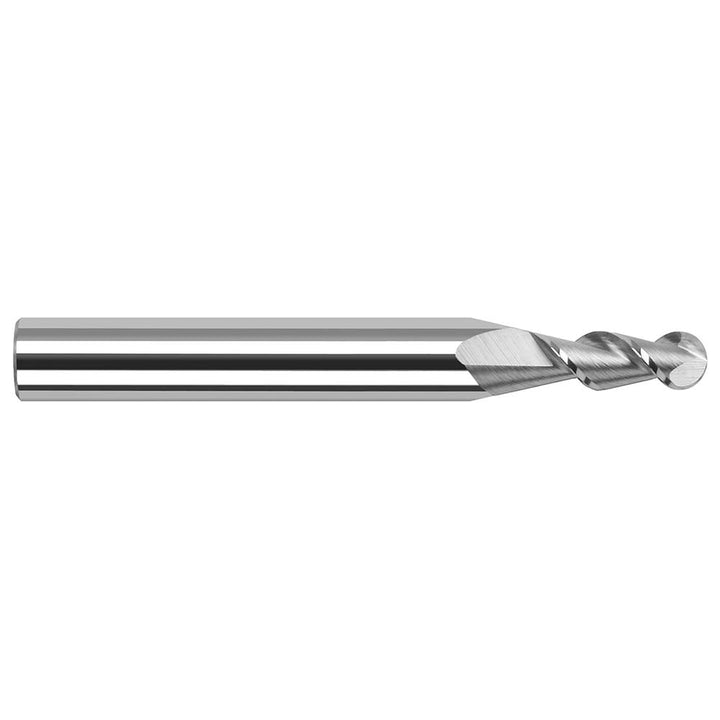

5/32in" 2-Flute Solid Carbide Ball End Mill - Harvey Tool 27910

Harvey Tool

5/32in" 2-Flute Solid Carbide Ball End Mill - Harvey Tool 27910

MFR# 27910Series High Helix End Mills for Aluminum Alloys - 45 Helix - Ball, Material Specific End Mills

$33.73List $39.38 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Harvey Tool 27910 is a 5/32in 2-flute Solid Carbide (Carbide) ball end mill. Suited for non-ferrous metal. 9/16 length of cut, 2in overall length. Series High Helix End Mills for Aluminum Alloys - 45 Helix - Ball, Material Specific End Mills.

Specifications

ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Helix styleHigh
Length of cut in9/16
Length typeStandard
Manufacturers catalog number27910
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in5/32in
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.0781
Number of flutes2
Overall length in2in
Primary workpiece materialNon-Ferrous Metal
Reach length0.5620
Shank diameter in3/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
