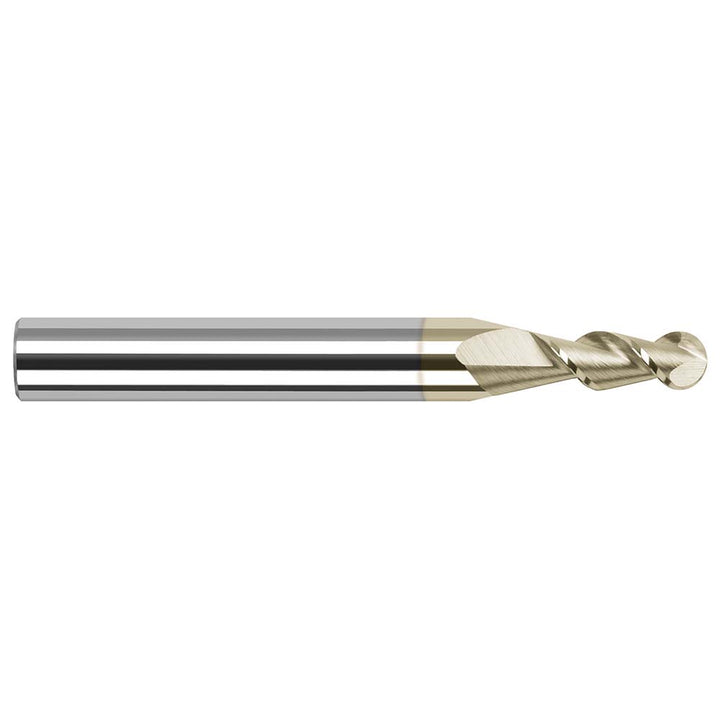

1/4in" 2-Flute Solid Carbide Ball End Mill, ZrN - Harvey Tool 27916-C7

Harvey Tool

1/4in" 2-Flute Solid Carbide Ball End Mill, ZrN - Harvey Tool 27916-C7

MFR# 27916-C7Series High Helix End Mills for Aluminum Alloys - 45 Helix - Ball, Material Specific End Mills

$52.10List $60.83 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes2
MaterialSolid Carbide
CoatingZrN

Description

The Harvey Tool 27916-C7 is a 1/4in 2-flute Solid Carbide (Carbide) ball end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 3/4in length of cut, 2-1/2in overall length. Series High Helix End Mills for Aluminum Alloys - 45 Helix - Ball, Material Specific End Mills.

Specifications

ChipbreakerNo
Coating finishZrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Helix styleHigh
Length of cut in3/4in
Length typeStandard
Manufacturers catalog number27916-C7
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.1250
Number of flutes2
Overall length in2-1/2in
Primary workpiece materialNon-Ferrous Metal
Reach length in3/4
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
