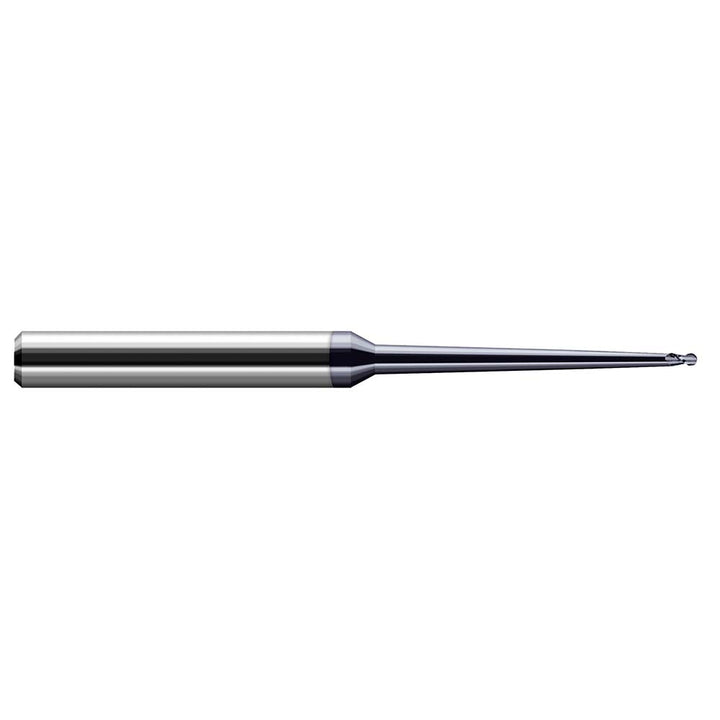

3/64in" 2-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 29847-C6

Harvey Tool

3/64in" 2-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 29847-C6

MFR# 29847-C6Series Miniature End Mills - Ball - Tapered Reach (Clearance Cutters), Miniature End Mills

$89.75List $102.96 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/64in
Flutes2
MaterialSolid Carbide
CoatingAlTiN Nano

Description

The Harvey Tool 29847-C6 is a 3/64in 2-flute Solid Carbide (Carbide) ball end mill with a AlTiN Nano finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 2-1/2in overall length. Series Miniature End Mills - Ball - Tapered Reach (Clearance Cutters), Miniature End Mills.

Specifications

ChipbreakerNo
Coating finishAlTiN Nano
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut (mm)1.80
Length typeStub
Manufacturers catalog number29847-C6
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/64in
Mill diameter tolerance+0.0000/-0.0010 in
Neck length0.4290
Nose radius0.0235
Number of flutes2
Overall length in2-1/2in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length in1/2
Shank diameter in1/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
