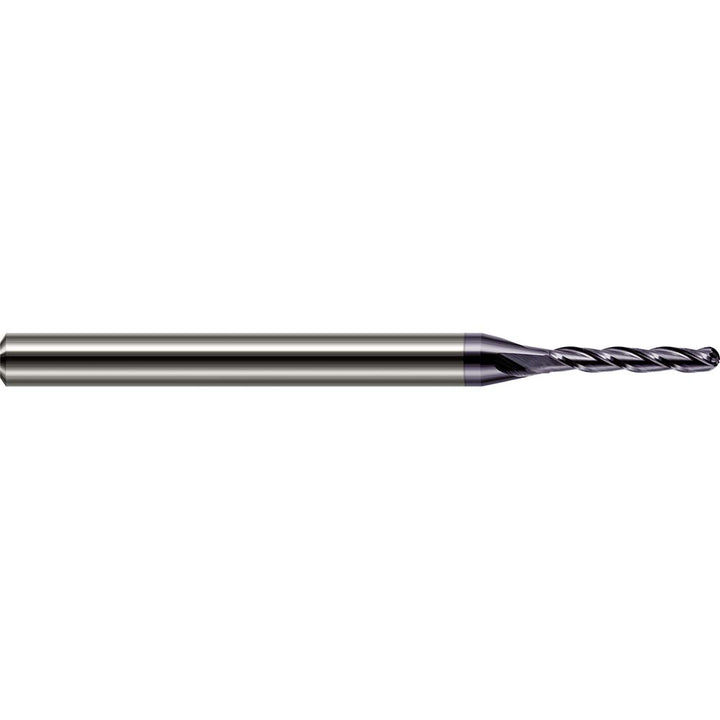

3/32" 3-Flute Solid Carbide Ball End Mill, AlTiN - Harvey Tool 32293-C3

Harvey Tool

3/32" 3-Flute Solid Carbide Ball End Mill, AlTiN - Harvey Tool 32293-C3

MFR# 32293-C3Series Miniature End Mills - Ball - Long Flute, Miniature End Mills

$49.86List $57.20 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 32293-C3 is a 3/32 3-flute Solid Carbide (Carbide) ball end mill with a AlTiN finish for longer tool life. Suited for hard material. 1/2in length of cut, 2-1/2in overall length. Series Miniature End Mills - Ball - Long Flute, Miniature End Mills.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle20
Helix styleVariable
Length of cut in1/2in
Length typeLong
Manufacturers catalog number32293-C3
Material gradeCarbide
Material removal typeFinishing
Mill diameter in3/32
Mill diameter tolerance+0.0005/-0.0005 in
Nose radius0.0465
Number of flutes3
Overall length in2-1/2in
Primary workpiece materialHard Material
Reach length in1/2
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in1/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixYes
Variable indexNo
