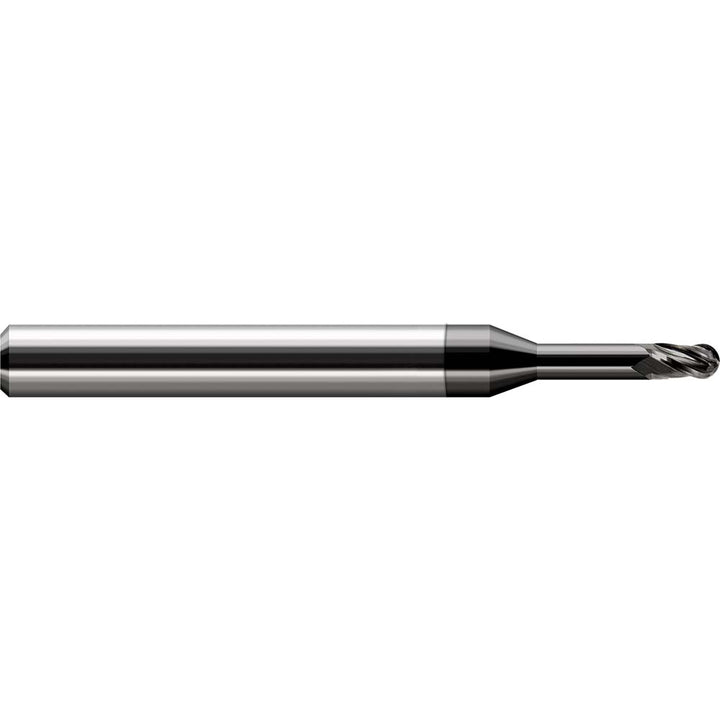

1/16" 3-Flute Solid Carbide Ball End Mill, Amorphous Diamond - Harvey Tool 33462-C4

Harvey Tool

1/16" 3-Flute Solid Carbide Ball End Mill, Amorphous Diamond - Harvey Tool 33462-C4

MFR# 33462-C4Series Miniature End Mills - Ball - Long Reach, Stub Flute, Miniature End Mills

$78.72List $90.31 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes3
MaterialSolid Carbide
CoatingAmorphous Diamond

Description

The Harvey Tool 33462-C4 is a 1/16 3-flute Solid Carbide (Carbide) ball end mill with a Amorphous Diamond finish for longer tool life. Suited for non-ferrous metal. 3/32 length of cut, 2-1/2in overall length. Series Miniature End Mills - Ball - Long Reach, Stub Flute, Miniature End Mills.

Specifications

ChipbreakerNo
Coating finishAmorphous Diamond
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in3/32
Length typeStub
Manufacturers catalog number33462-C4
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/16
Mill diameter tolerance+0.0005/-0.0005 in
Neck length in7/32in
Nose radius0.0310
Number of flutes3
Overall length in2-1/2in
Primary workpiece materialNon-Ferrous Metal
Reach length in5/16
Shank diameter in1/8in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
