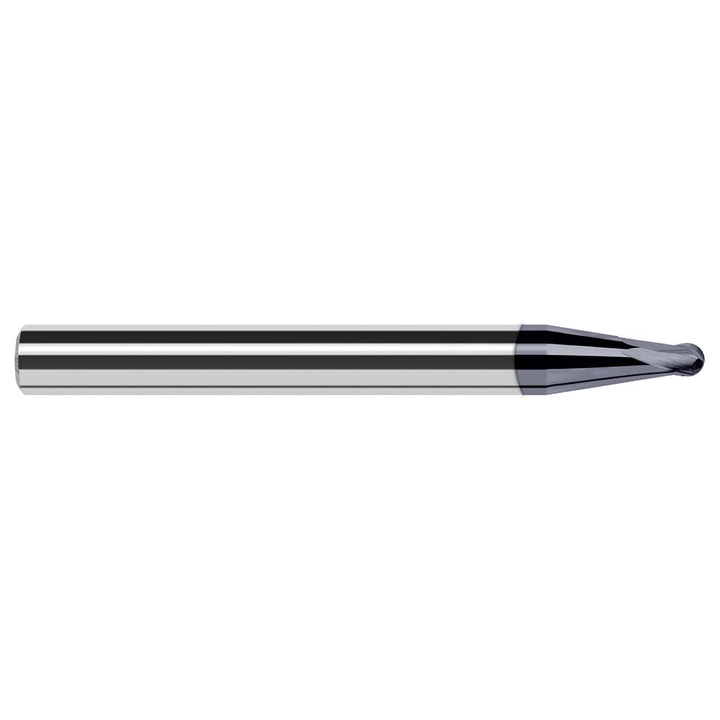

3/64" 2-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 40447-C6

Harvey Tool

3/64" 2-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 40447-C6

MFR# 40447-C6Series High Helix End Mills for Medium Alloy Steels - Ball - Tapered Reach (Mold Cutters), Material Specific End Mills

$100.97List $115.83 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/64
Flutes2
MaterialSolid Carbide
CoatingAlTiN Nano

Description

The Harvey Tool 40447-C6 is a 3/64 2-flute Solid Carbide (Carbide) ball end mill with a AlTiN Nano finish for longer tool life. Suited for steel, hard material. 2-1/2 overall length. Series High Helix End Mills for Medium Alloy Steels - Ball - Tapered Reach (Mold Cutters), Material Specific End Mills.

Specifications

ChipbreakerNo
Coating finishAlTiN Nano
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Helix styleMedium
Length typeStub
Manufacturers catalog number40447-C6
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/64
Mill diameter tolerance+0.0000/-0.0010 in
Neck length0.8270
Nose radius0.0235
Number of flutes2
Overall length in2-1/2
Primary workpiece materialSteel; Hard Material
Reach length0.8650
Secondary workpiece materialStainless Steel; Cast Iron
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
