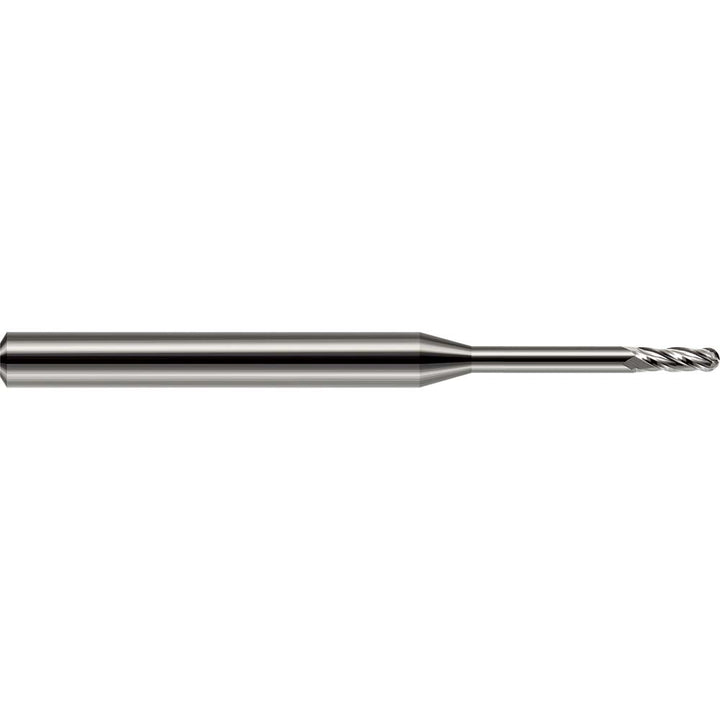

3/64" 2-Flute Solid Carbide Ball End Mill - Harvey Tool 76647

Harvey Tool

3/64" 2-Flute Solid Carbide Ball End Mill - Harvey Tool 76647

MFR# 76647Series Miniature End Mills - Ball - Long Reach, Standard Flute, Miniature End Mills

$49.83List $53.04 Save 6%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/64
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Harvey Tool 76647 is a 3/64 2-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal. 9/64 length of cut, 1-1/2 overall length. Series Miniature End Mills - Ball - Long Reach, Standard Flute, Miniature End Mills.

Specifications

ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/64
Length typeStandard
Manufacturers catalog number76647
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/64
Mill diameter tolerance+0.0005/-0.0005 in
Neck length0.2820
Nose radius0.0235
Number of flutes2
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Reach length0.4230
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
