Harvey Tool

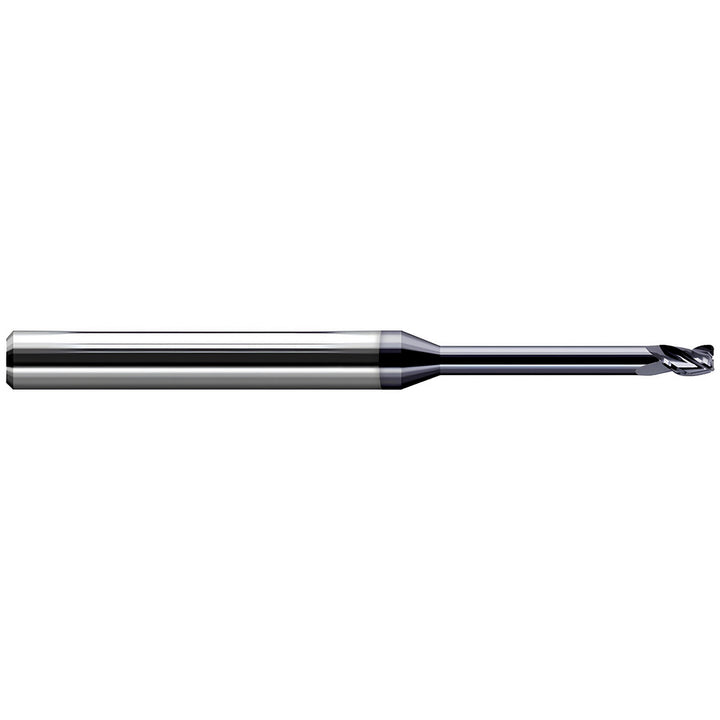

3/16in" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 41812-C3
MFR# 41812-C3Series Miniature End Mills - Corner Radius - Long Reach; Stub Flute; Miniature End Mills
$73.68List $86.02
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16in
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The Harvey Tool 41812-C3 is a 3/16in 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 9/32in length of cut, 3in overall length. Series Miniature End Mills - Corner Radius - Long Reach; Stub Flute; Miniature End Mills.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0100
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut in9/32in
Length typeExtended
Material applicationNon-Ferrous Metal; Cast Iron; Steel; Stainless Steel; Composite
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter tolerance0.0000/-0.0020 in
Number of flutes3
Overall length in3in
Overall length tolerance0.0100/-0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO
Reach length in1-1/2
Shank diameter in3/16in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
