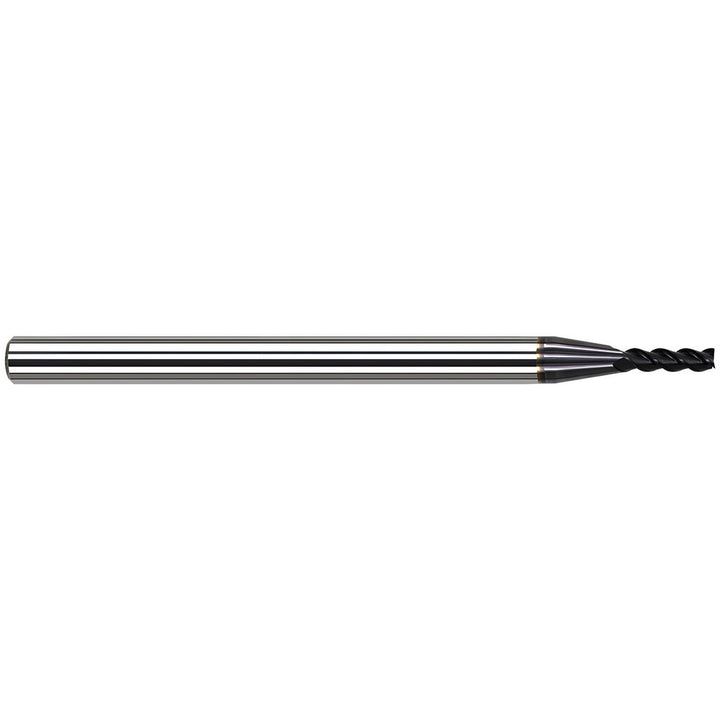

0.0620" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 45662-C3

Harvey Tool

0.0620" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 45662-C3

MFR# 45662-C3Series Variable Helix End Mills for Medium Alloy Steels - Corner Radius; Material Specific End Mills

$43.15List $49.50 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 45662-C3 is a 0.0620 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/2 overall length. Series Variable Helix End Mills for Medium Alloy Steels - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0100
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut0.2362
Length typeRegular
Material applicationCast Iron; Steel; Stainless Steel
Material removal typeRoughing & Finishing
Mill diameter0.0620
Mill diameter tolerance0.0005 to -0.0005 in
Number of flutes3
Overall length in1-1/2
Overall length tolerance0.0100 to -0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
