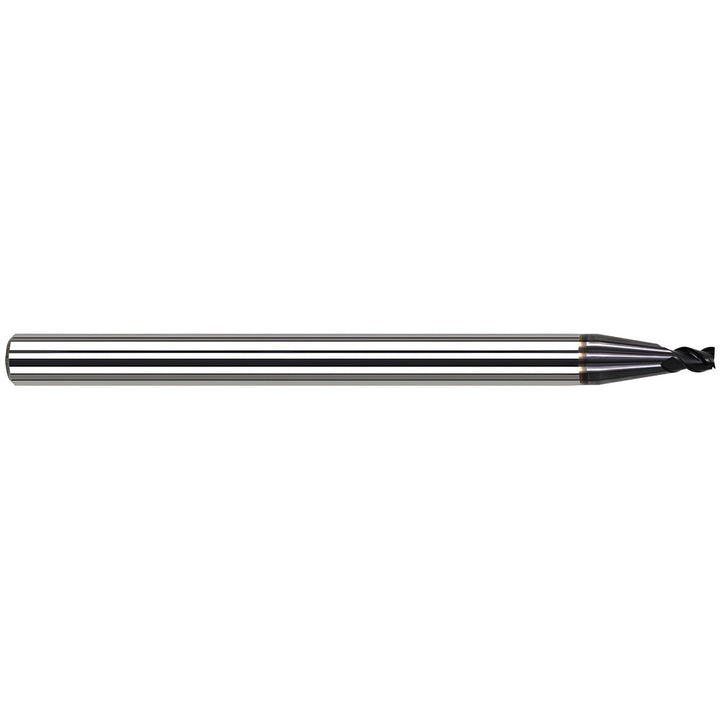

0.1180" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 46905-C6

Harvey Tool

0.1180" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 46905-C6

MFR# 46905-C6Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills

$35.27List $37.54 Save 6%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 46905-C6 is a 0.1180 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1-1/2 overall length. Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0100
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withHigh Precision Toolholder
Helix styleVariable
Length of cut0.1563
Length typeRegular
Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy
Material removal typeRoughing & Finishing
Mill diameter0.1180
Mill diameter tolerance0.0005 to -0.0005 in
Number of flutes3
Overall length in1-1/2
Overall length tolerance0.0100 to -0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
