Harvey Tool

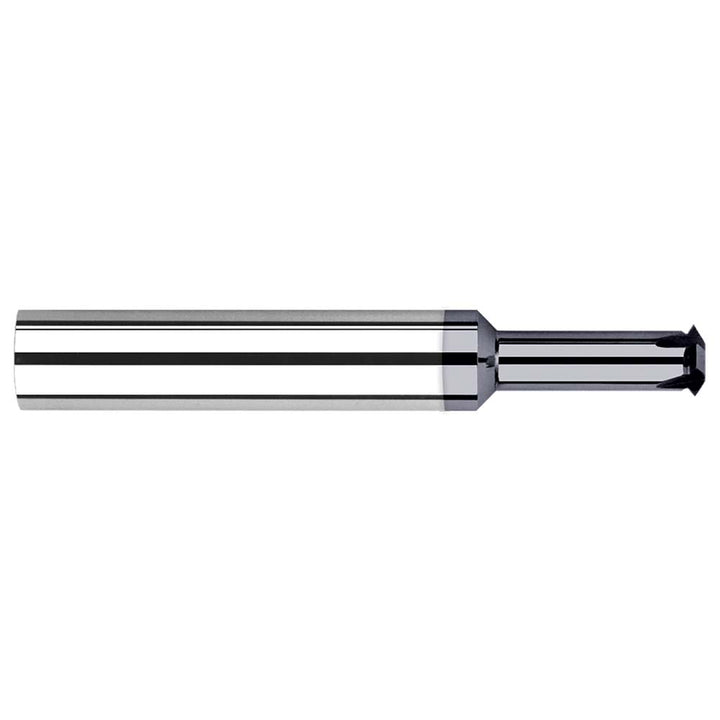

5/8" Single Profile Thread Mills - Harvey Tool 54290-C3
MFR# 54290-C3Series Thread Milling Cutters - Single Form - UN Threads
$285.29List $333.08
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
CoatingAlTiN
Description
The Harvey Tool 54290-C3 single profile thread mills. Series Thread Milling Cutters - Single Form - UN Threads.
Specifications
Coating finishAlTiN
Cutting diameter in5/8
MaterialSolid Carbide
Maximum pitch0.0139
Maximum threads per inch72
Minimum nominal diameter in#1
Minimum pitch0.1250
Minimum threads per inch8
Neck diameter0.4200
Number of flutes6
Overall length in4
Shank diameter in5/8
Shank length1.7500
Thread depth2.2500
Thread size1-8 - #1-72
Thread standardUN 60 Degree
Thread typeInternal; External
