Harvey Tool

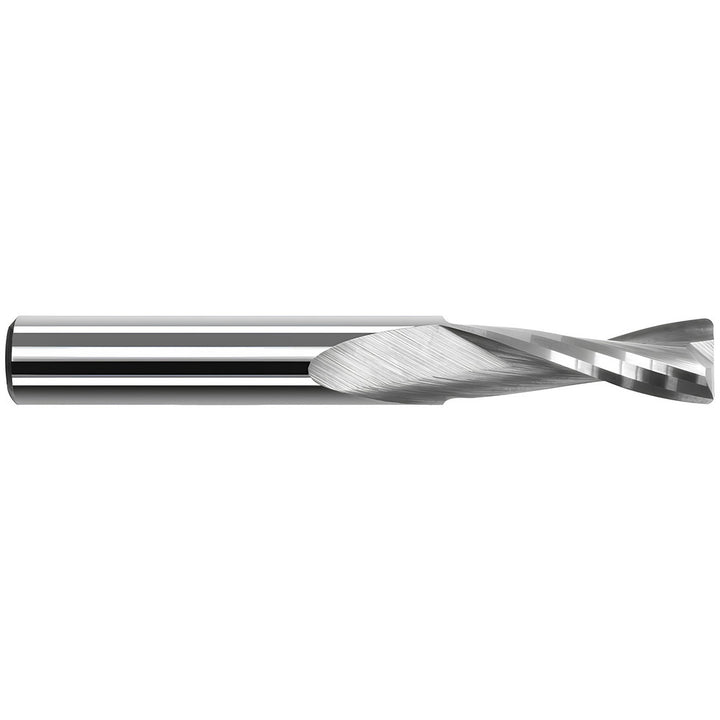

1/16" 2-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 55462

MFR# 55462Series End Mills for Plastics - Corner Radius Upcut - 2 Flute; Material Specific End Mills

$37.48List $40.60 Save 7%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/16

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Harvey Tool 55462 is a 1/16 2-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal, non-iso. 1-1/2 overall length. Series End Mills for Plastics - Corner Radius Upcut - 2 Flute; Material Specific End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0100

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleLow

Length of cut0.1860

Length typeRegular

Material applicationAluminum; Wood; Composite

Material removal typeRoughing & Finishing

Mill diameter in1/16

Mill diameter tolerance0.0000/-0.0020 in

Number of flutes2

Overall length in1-1/2

Overall length tolerance0.0100/-0.0000 in

PitchCoarse

Primary workpiece materialNon-Ferrous Metal; Non-ISO

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
