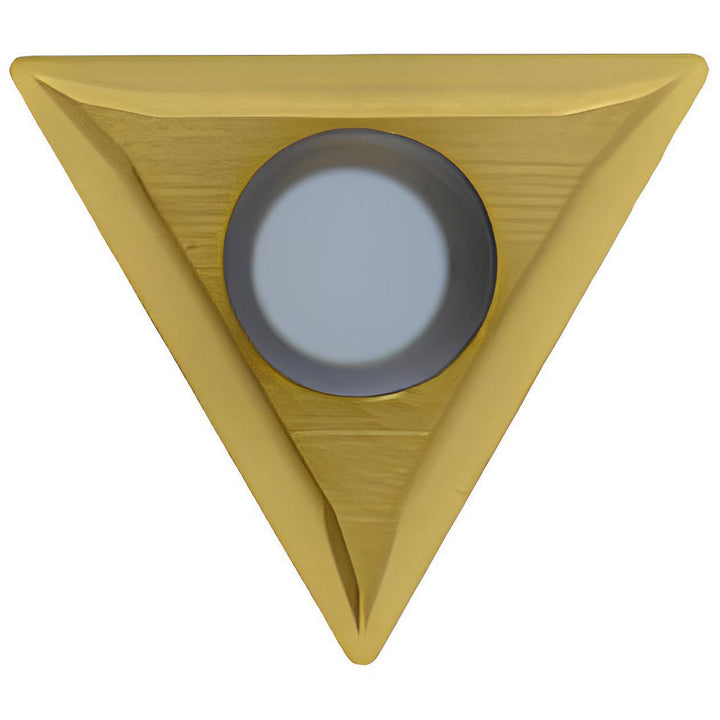

Triangle 3/8" IC Solid Carbide Insert, TiN - Harvey Tool 60031

Harvey Tool

Triangle 3/8" IC Solid Carbide Insert, TiN - Harvey Tool 60031

MFR# 60031Cat# TPET-321

$19.31List $22.55 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
MaterialSolid Carbide
CoatingTiN

Description

The Harvey Tool 60031 is a solid carbide indexable insert, TiN coated. Suited for steel.

Specifications

Ansi codeTPET-321
Chip breakerCommon
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutter series compatibility81250; 81260
Cutting edge styleSingle Sided
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size3
Insert size code321
Insert styleTPET
Length0.6500
Length range0.6500 to 0.7000
Manufacturers catalog numberTPET-321
Material applicationSteel
Maximum depth of cut0.1250
Multi use toolNo
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.6500
