Harvey Tool

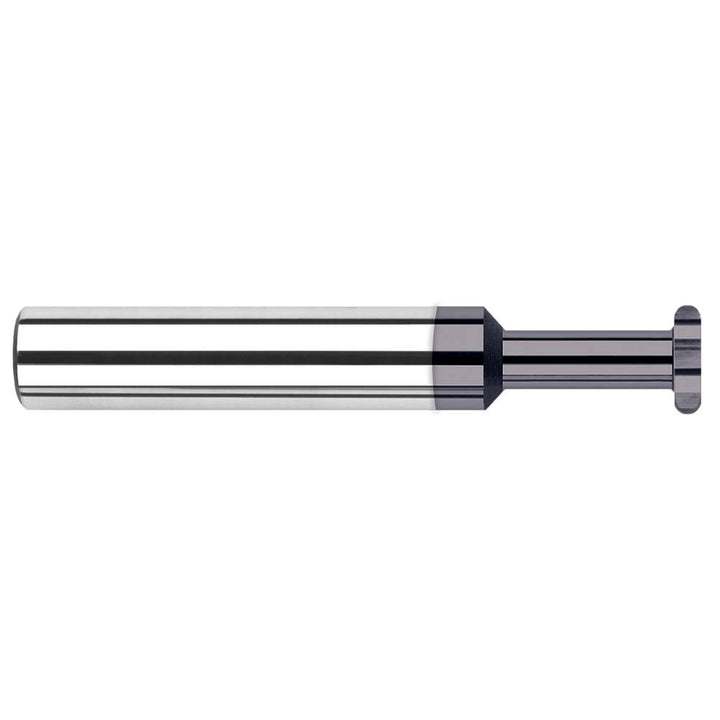

Woodruff/Keyseat Cutters & Sets - Harvey Tool 68420-C3
MFR# 68420-C3
$172.02List $197.34
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.3/8
CoatingAlTiN
Description
The Harvey Tool 68420-C3 woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron.
Specifications
Coating finishAlTiN
Connection typeShank
Corner radius0.0200
Cutter diameter in3/8
Cutter materialSolid Carbide
Cutting width0.0400
Neck diameter0.1870
Neck length0.5630
Number of teeth6
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/8
Tooth configurationStraight
Weldon flatNo
