Harvey Tool

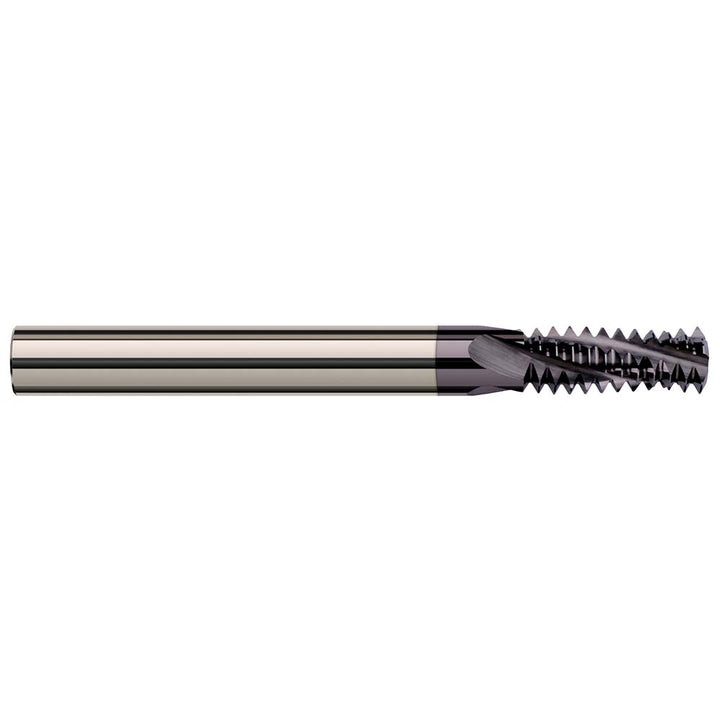

Helical Flute Thread Mills - Harvey Tool 70204-C3
MFR# 70204-C3
$215.95List $252.12
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/16-27; 1/8-27
CoatingAlTiN
Description
The Harvey Tool 70204-C3 helical flute thread mills.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting diameter0.2450
Length of cut0.4370
MaterialSolid Carbide
Minimum nominal diameter in0.0625
Number of flutes3
Overall length2.5000
Shank diameter0.2500
Teeth per inch27
Thread size in1/16-27; 1/8-27
Thread typeInternal; External
