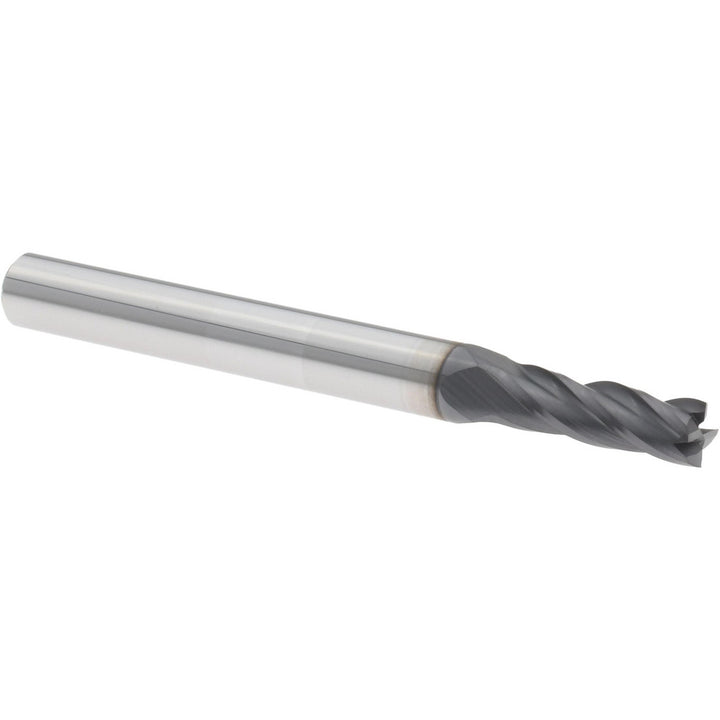

13/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 73190-C3

Harvey Tool

13/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 73190-C3

MFR# 73190-C3

$33.92List $39.60 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter13/64
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 73190-C3 is a 13/64 4-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. 5/8 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Mill diameter in13/64
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Variable helixNo
