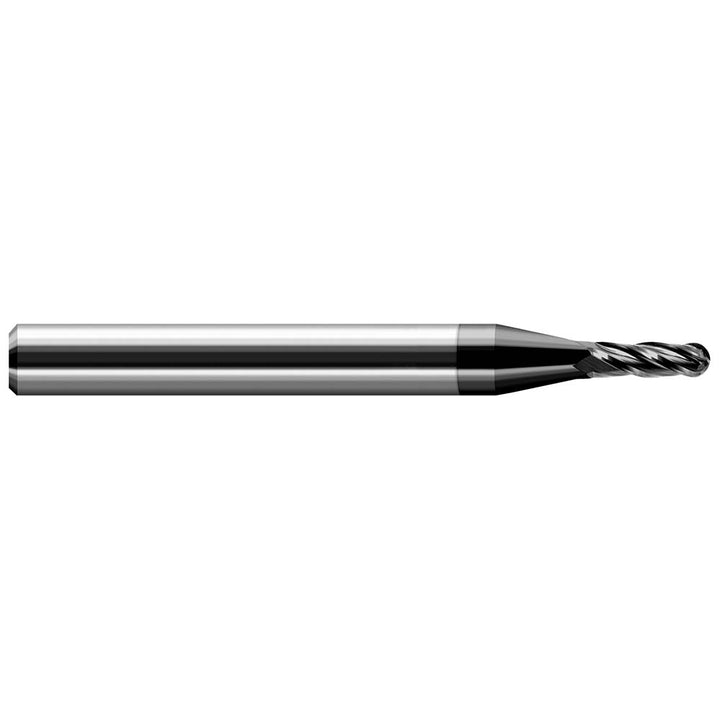

1/16" 4-Flute Solid Carbide Ball End Mill, Amorphous Diamond - Harvey Tool 74362-C4

Harvey Tool

1/16" 4-Flute Solid Carbide Ball End Mill, Amorphous Diamond - Harvey Tool 74362-C4

MFR# 74362-C4Series Miniature End Mills - Ball - Stub & Standard, Miniature End Mills

$50.44List $57.86 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes4
MaterialSolid Carbide
CoatingAmorphous Diamond

Description

The Harvey Tool 74362-C4 is a 1/16 4-flute Solid Carbide (Carbide) ball end mill with a Amorphous Diamond finish for longer tool life. Suited for non-ferrous metal. 1-1/2 overall length. Series Miniature End Mills - Ball - Stub & Standard, Miniature End Mills.

Specifications

ChipbreakerNo
Coating finishAmorphous Diamond
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length typeStandard
Manufacturers catalog number74362-C4
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/16
Mill diameter tolerance+0.0005/-0.0005 in
Nose radius0.0310
Number of flutes4
Overall length in1-1/2
Primary workpiece materialNon-Ferrous Metal
Reach length0.1860
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
