Harvey Tool

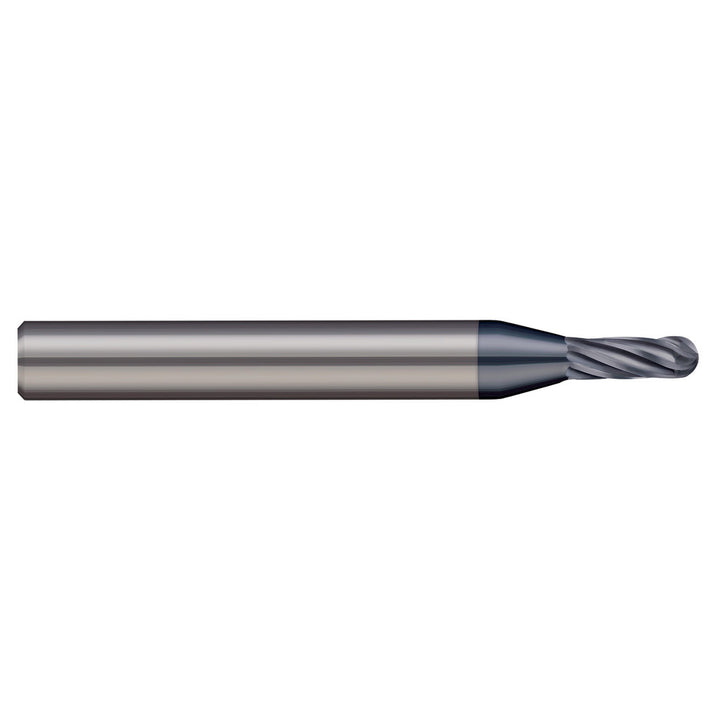

3/16" 6-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 763512-C6

MFR# 763512-C6Series End Mills for Hardened Steels - Ball - For Steels 45-68 Rc, Material Specific End Mills

$48.96List $53.04 Save 7%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes6

MaterialSolid Carbide

CoatingAlTiN Nano

Description

The Harvey Tool 763512-C6 is a 3/16 6-flute Solid Carbide (Carbide) ball end mill with a AlTiN Nano finish for longer tool life. Suited for hard material. 2-1/2 overall length. Series End Mills for Hardened Steels - Ball - For Steels 45-68 Rc, Material Specific End Mills.

Specifications

ChipbreakerNo

Coating finishAlTiN Nano

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle20

Helix styleVariable

Length typeStandard

Manufacturers catalog number763512-C6

Material gradeCarbide

Material removal typeRoughing

Mill diameter in3/16

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.0938

Number of flutes6

Overall length in2-1/2

Primary workpiece materialHard Material

Reach length0.5630

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexNo
