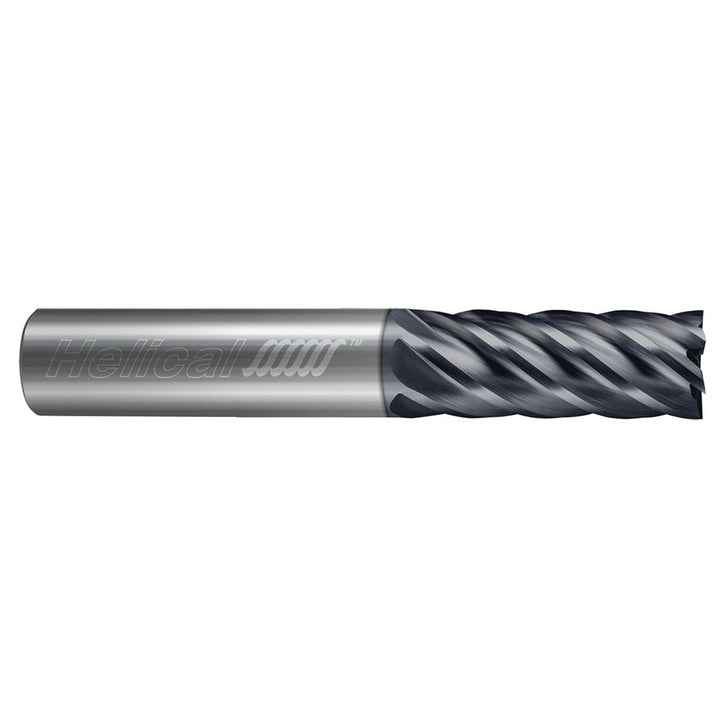

3/16" 6-Flute Solid Carbide Square End Mill, APLUS - Helical Solutions 87213

Helical Solutions

3/16" 6-Flute Solid Carbide Square End Mill, APLUS - Helical Solutions 87213

MFR# 87213Series End Mills for Titanium - 6 Flute - Square - Variable Pitch - For HEM

$29.91List $34.32 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes6
MaterialSolid Carbide
CoatingAPLUS

Description

The Helical Solutions 87213 is a 3/16 6-flute Solid Carbide square end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 5/16 length of cut, 2-1/2 overall length. Series End Mills for Titanium - 6 Flute - Square - Variable Pitch - For HEM.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAPLUS
Coating finish familyAPLUS
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut in5/16
Material gradeSolid Carbide
Mill diameter in3/16
Number of flutes6
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Shank diameter in1/4
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
