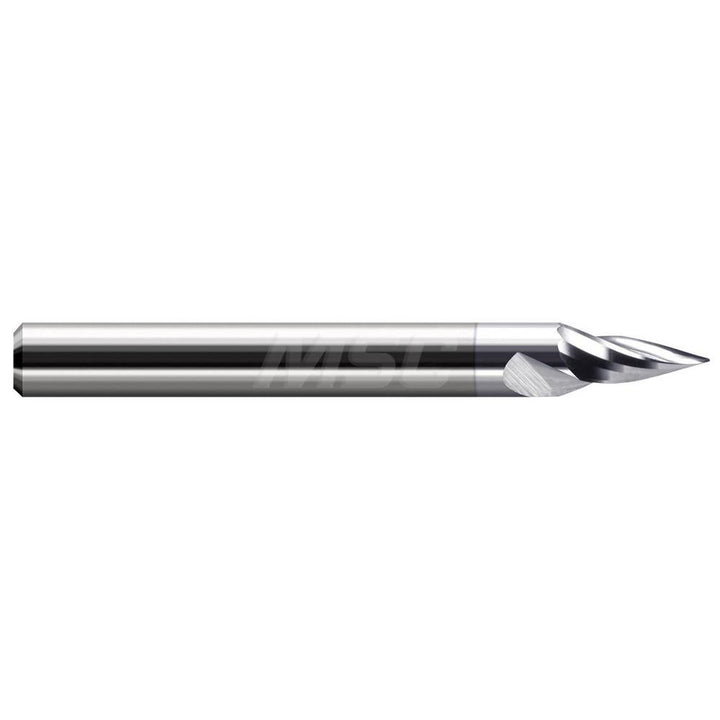

2-Flute Solid Carbide Tapered End Mill, TiB2 - Harvey Tool 771202-C8

Harvey Tool

2-Flute Solid Carbide Tapered End Mill, TiB2 - Harvey Tool 771202-C8

MFR# 771202-C8Series Runner Cutters - For Non-Ferrous Materials

$78.39List $91.52 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingTiB2

Description

The Harvey Tool 771202-C8 is a 2-flute Solid Carbide tapered end mill with a Titanium Diboride finish for longer tool life. 2 overall length. Series Runner Cutters - For Non-Ferrous Materials.

Specifications

CentercuttingYes
Coating finishTiB2
End mill materialSolid Carbide
End shapeBall
Helix angle20
Length of cut0.2610
Nose radius in1/32
Number of flutes2
Overall length in2
Shank diameter in3/16
Small end diameter0.0620
Taper angle per side20.00
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
