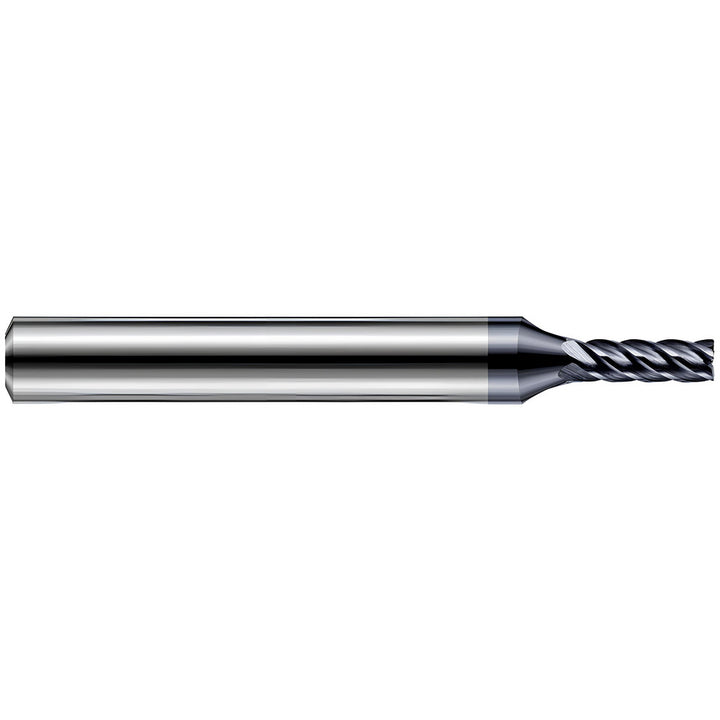

3/16" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 852812-C6

MFR# 852812-C6Series End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc; Material Specific End Mills

$102.13List $119.24 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 852812-C6 is a 3/16 5-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 9/16 length of cut, 2-1/2 overall length. Series End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc; Material Specific End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0150

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in9/16

Length typeRegular

Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter tolerance0.0000/-0.0020 in

Number of flutes5

Overall length in2-1/2

Overall length tolerance0.0100/-0.0000 in

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
