Harvey Tool

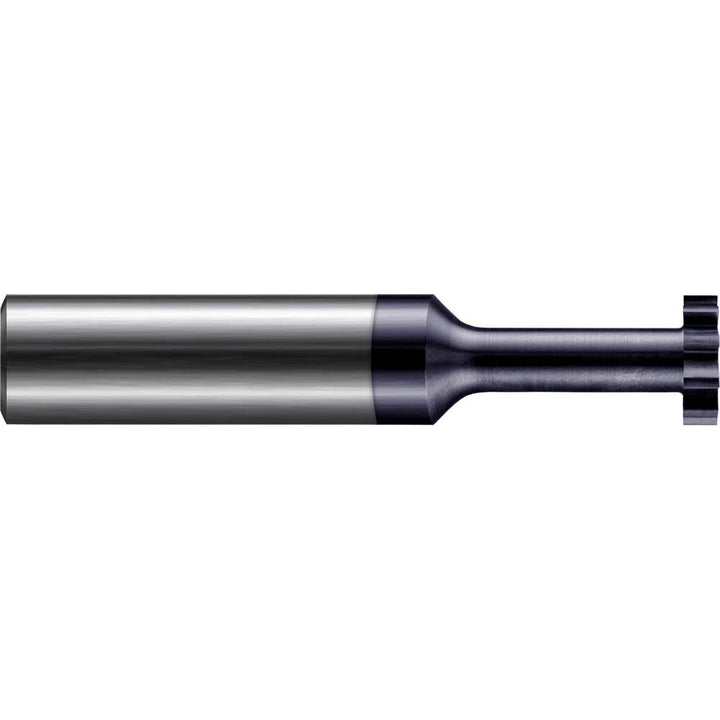

Woodruff/Keyseat Cutters & Sets - Harvey Tool 860147-C6
MFR# 860147-C6
$98.84List $115.39
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.1/4
CoatingAlTiN
Description
The Harvey Tool 860147-C6 woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron, hardened alloy.
Specifications
Coating finishAlTiN
Connection typeShank
Cutter diameter in1/4
Cutter materialSolid Carbide
Cutting width in3/64
Neck diameter0.1250
Neck length0.3750
Number of teeth8
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Alloy
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
Shank diameter in1/4
Tooth configurationStraight
Weldon flatNo
