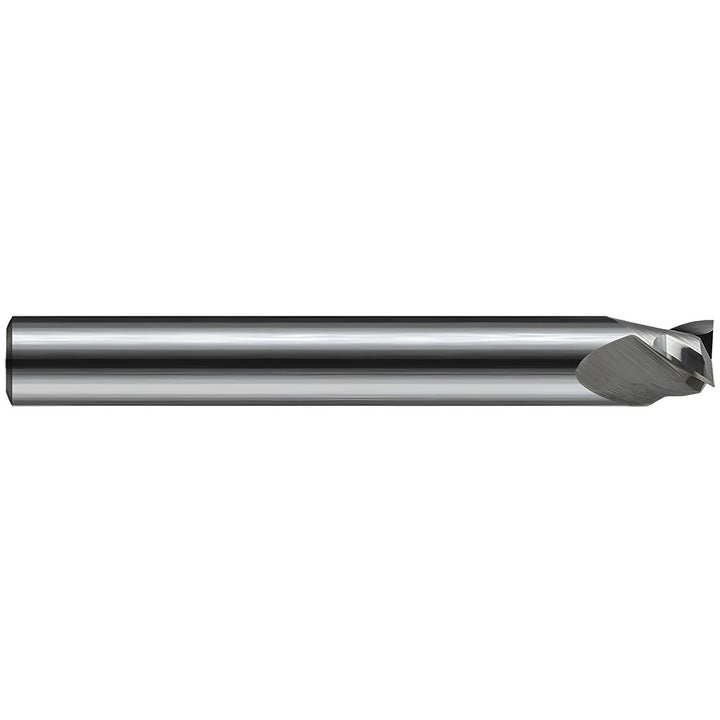

0.2060" 3-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 862606

Harvey Tool

0.2060" 3-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 862606

MFR# 862606Series Picatinny Form Cutters - Picatinny Recoil Groove End Mills; Specialty Profiles

$59.83List $69.85 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Harvey Tool 862606 is a 0.2060 3-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 2-1/2 overall length. Series Picatinny Form Cutters - Picatinny Recoil Groove End Mills; Specialty Profiles.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0100
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut0.1180
Length typeStub
Material applicationAluminum; Non-Ferrous Metal; Cast Iron; Steel; Stainless Steel; Wood; Composite
Material removal typeRoughing & Finishing
Mill diameter0.2060
Mill diameter tolerance0.0020/-0.0000 in
Number of flutes3
Overall length in2-1/2
Overall length tolerance0.0100/-0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO
Shank diameter in1/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
