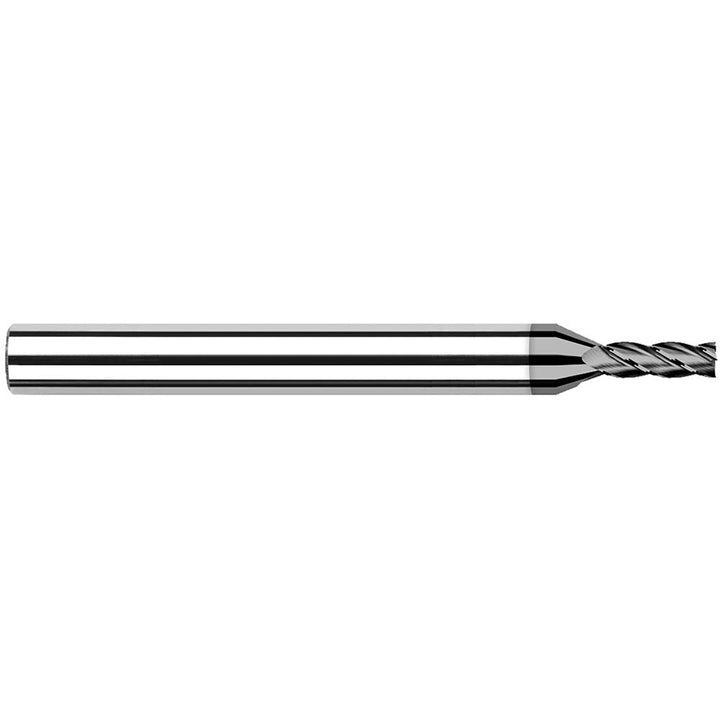

1/4" 4-Flute Solid Carbide Square End Mill, CVD Diamond - Harvey Tool 871316

Harvey Tool

1/4" 4-Flute Solid Carbide Square End Mill, CVD Diamond - Harvey Tool 871316

MFR# 871316

$231.77List $270.60 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingCVD Diamond

Description

The Harvey Tool 871316 is a 1/4 4-flute Solid Carbide square end mill with a CVD Diamond finish for longer tool life. 1 length of cut, 4 overall length.

Specifications

CentercuttingNo
Coating finishCVD Diamond
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Mill diameter in1/4
Number of flutes4
Overall length in4
Shank diameter in1/4
Variable helixNo
