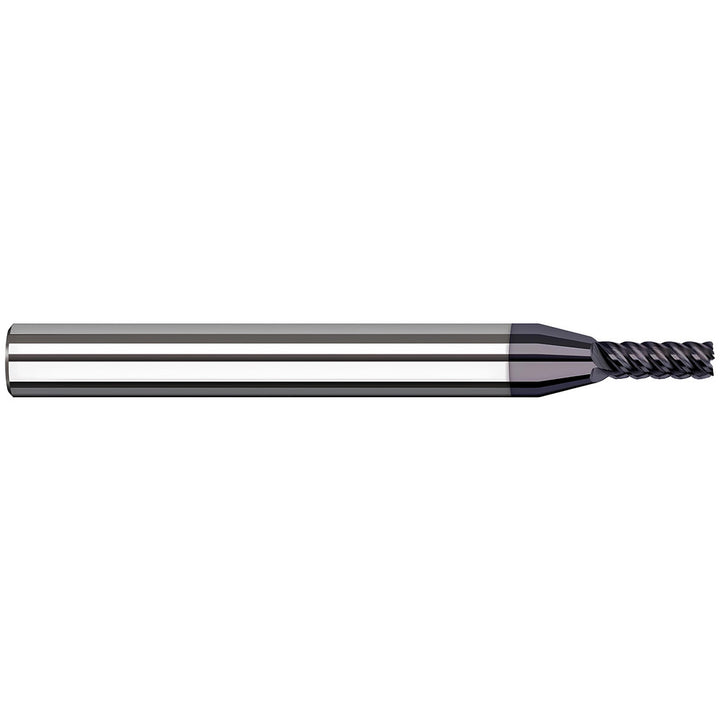

1/4" 7-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 872316-C6

Harvey Tool

1/4" 7-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 872316-C6

MFR# 872316-C6Series Variable Helix End Mills for High Temp Alloys - Finishers - Corner Radius; Material Specific End Mills

$68.37List $78.43 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes7
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 872316-C6 is a 1/4 7-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 3/8 length of cut, 2-1/2 overall length. Series Variable Helix End Mills for High Temp Alloys - Finishers - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0050
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withHigh Precision Toolholder
Helix styleVariable
Length of cut in3/8
Length typeShort
Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy
Material removal typeFinishing
Mill diameter in1/4
Mill diameter tolerance0.0000 to -0.0020 in
Number of flutes7
Overall length in2-1/2
Overall length tolerance0.0100 to -0.0000 in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
