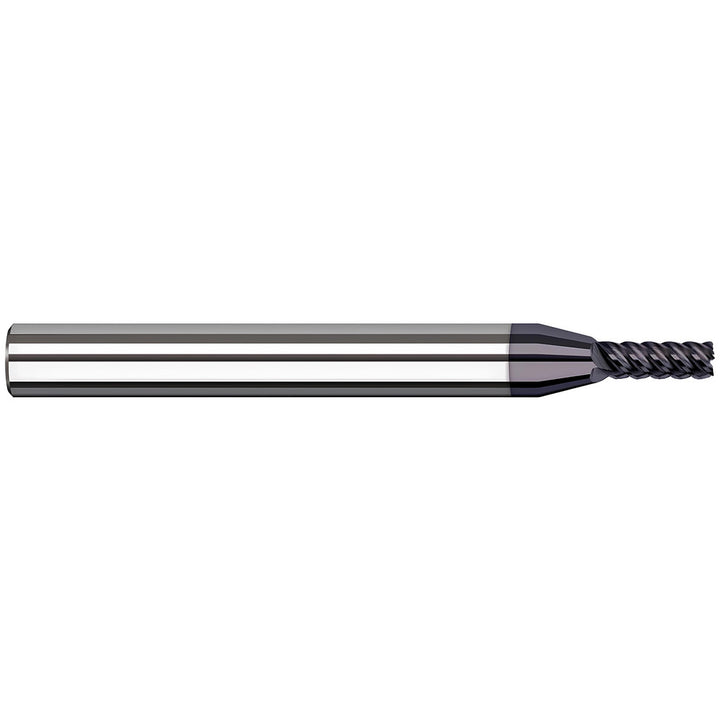

1/8" 7-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 874708-C6

Harvey Tool

1/8" 7-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 874708-C6

MFR# 874708-C6Series Variable Helix End Mills for High Temp Alloys - Finishers - Corner Radius; Material Specific End Mills

$50.91List $58.41 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes7
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 874708-C6 is a 1/8 7-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 5/8 length of cut, 2-1/2 overall length. Series Variable Helix End Mills for High Temp Alloys - Finishers - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0050
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withHigh Precision Toolholder
Helix styleVariable
Length of cut in5/8
Length typeLong
Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy
Material removal typeFinishing
Mill diameter in1/8
Mill diameter tolerance0.0000 to -0.0020 in
Number of flutes7
Overall length in2-1/2
Overall length tolerance0.0100 to -0.0000 in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
