Harvey Tool

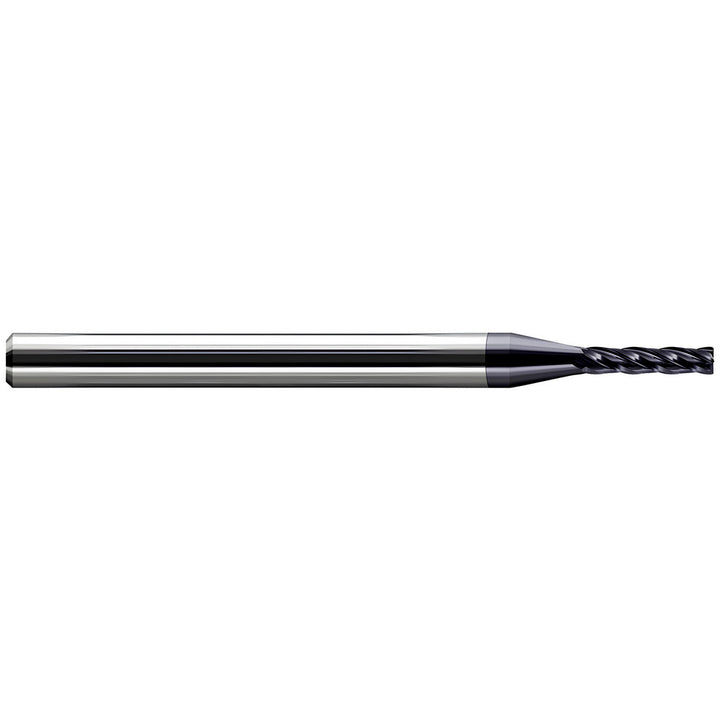

0.0780in" 4-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 888278
MFR# 888278Series Miniature End Mills - Corner Radius - Long Flute; Miniature End Mills
$38.04List $40.49
Save 6%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Harvey Tool 888278 is a 0.0780in 4-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 5/8in length of cut, 2-1/2in overall length. Series Miniature End Mills - Corner Radius - Long Flute; Miniature End Mills.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0150
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut in5/8in
Length typeExtra Long
Material applicationAluminum; Cast Iron; Steel; Stainless Steel; Wood; Composite
Material removal typeFinishing
Mill diameter0.0780in
Mill diameter tolerance0.0005/-0.0005 in
Number of flutes4
Overall length in2-1/2in
Overall length tolerance0.0100/-0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO
Shank diameter in1/8in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
