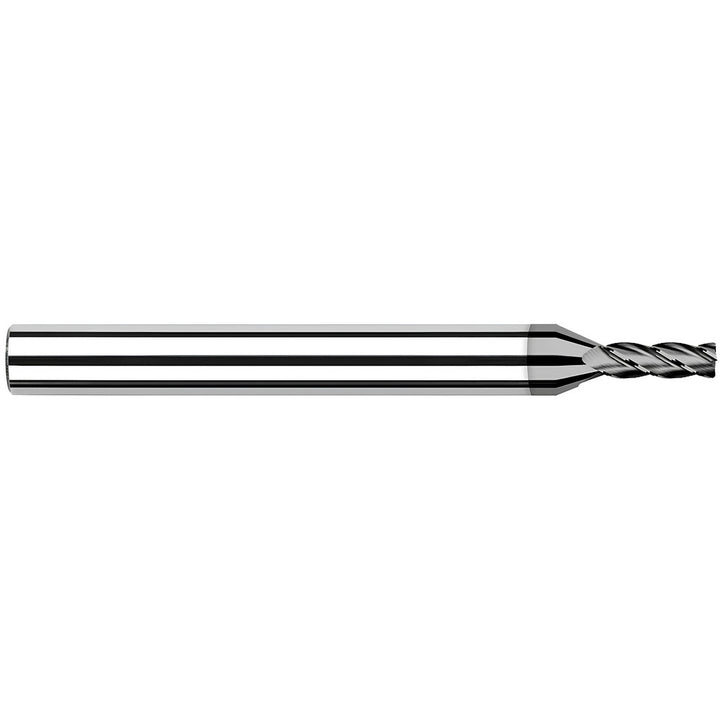

3/32" 4-Flute Solid Carbide Corner Radius End Mill, Diamond - Harvey Tool 906293

Harvey Tool

3/32" 4-Flute Solid Carbide Corner Radius End Mill, Diamond - Harvey Tool 906293

MFR# 906293Series Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius; Material Specific End Mills

$140.19List $160.82 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes4
MaterialSolid Carbide
CoatingDiamond

Description

The Harvey Tool 906293 is a 3/32 4-flute Solid Carbide corner radius end mill with a Diamond finish for longer tool life. Suited for non-iso, graphite. 1-1/2 overall length. Series Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishDiamond
Coolant throughNo
Corner radius0.0300
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut0.2790
Length typeRegular
Material applicationComposite; Graphite
Material removal typeRoughing & Finishing
Mill diameter in3/32
Mill diameter tolerance0.0000/-0.0010 in
Number of flutes4
Overall length in1-1/2
Overall length tolerance0.0100/-0.0000 in
PitchNormal
Primary workpiece materialNon-ISO; Graphite
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
