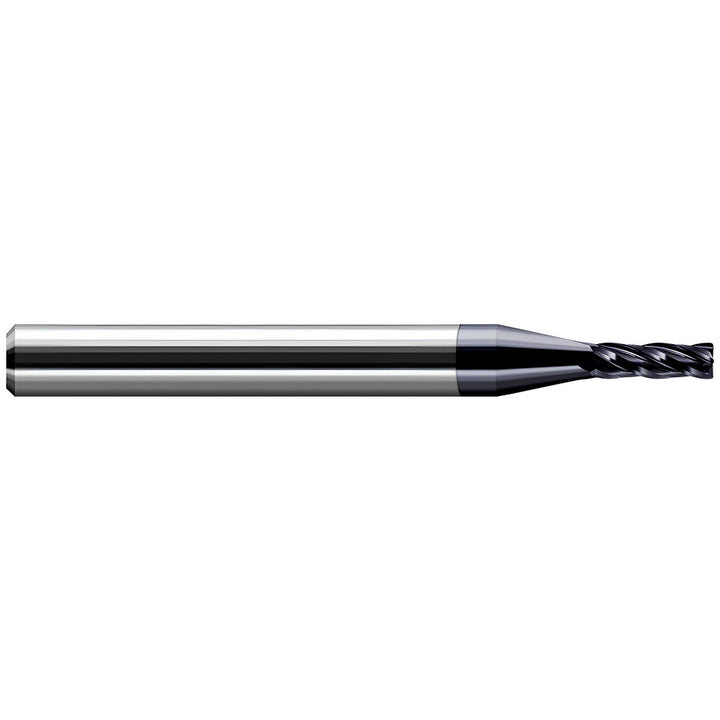

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 915240-C3

Harvey Tool

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 915240-C3

MFR# 915240-C3Series Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills

$85.43List $98.01 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 915240-C3 is a 3/8 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 2-1/2 overall length. Series Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0400
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Length of cut0.2000
Length typeShort
Material applicationNon-Ferrous Metal; Cast Iron; Steel; Stainless Steel; Composite
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance0.0000 to -0.0020 in
Number of flutes4
Overall length in2-1/2
Overall length tolerance0.0100 to -0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO
Shank diameter in3/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
