Harvey Tool

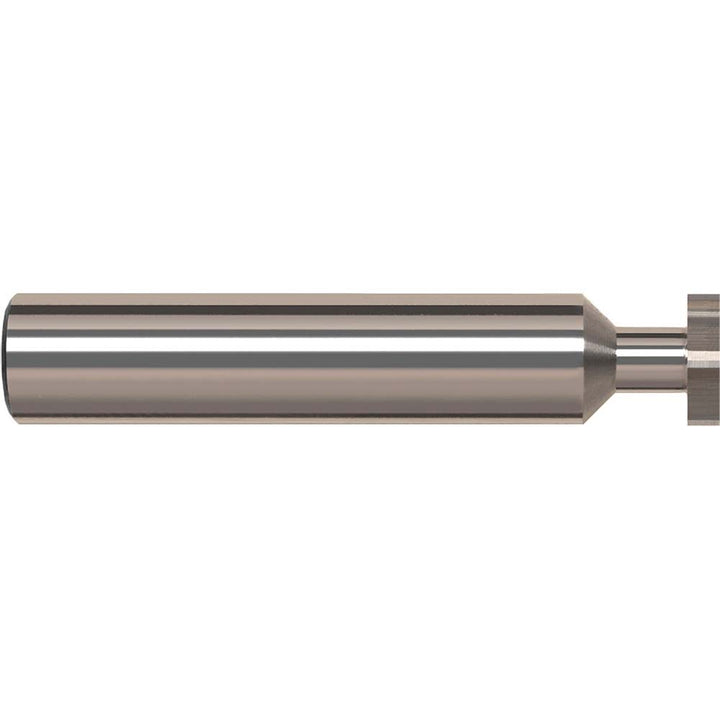

Woodruff/Keyseat Cutters & Sets - Harvey Tool 917560
MFR# 917560
$176.00List $205.48
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.1/2
Description
The Harvey Tool 917560 woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron.
Specifications
American standard number404
Connection typeShank
Cutter diameter in1/2
Cutter materialSolid Carbide
Cutting width in1/8
Neck diameter0.1560
Neck length0.2500
Number of teeth6
Old standard number3
Overall length in3
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/2
Tooth configurationStraight
Weldon flatNo
