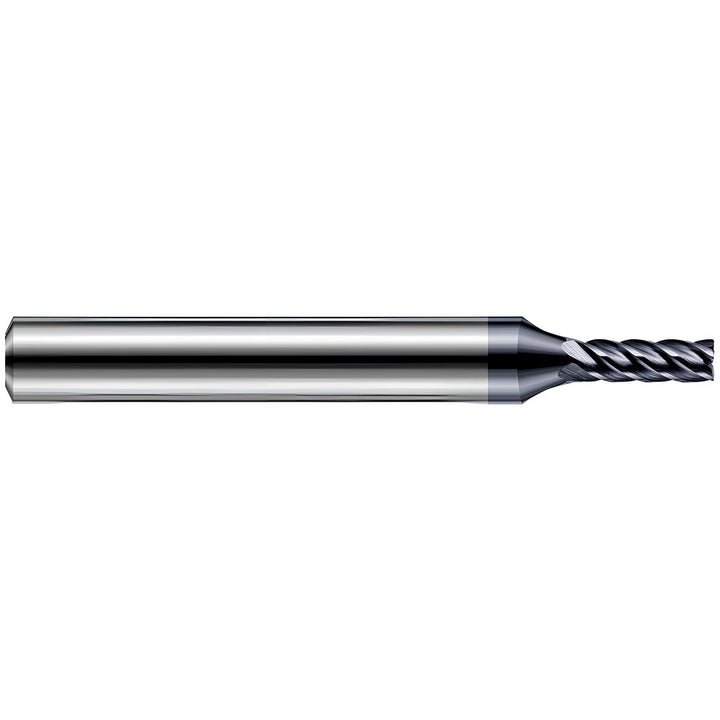

0.0930" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 920493-C6

Harvey Tool

0.0930" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 920493-C6

MFR# 920493-C6Series End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc; Material Specific End Mills

$98.85List $113.41 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 920493-C6 is a 0.0930 5-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 9/64 length of cut, 2-1/2 overall length. Series End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc; Material Specific End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0050
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withHigh Precision Toolholder
Helix styleVariable
Length of cut in9/64
Length typeShort
Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy
Material removal typeRoughing & Finishing
Mill diameter0.0930
Mill diameter tolerance0.0005 to -0.0005 in
Number of flutes5
Overall length in2-1/2
Overall length tolerance0.0100 to -0.0000 in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
