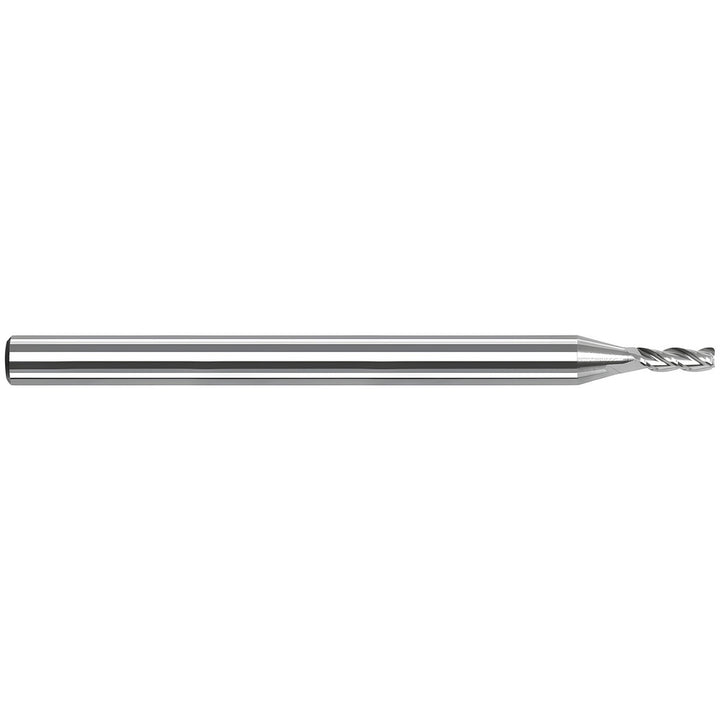

0.0930" 3-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 925893

Harvey Tool

0.0930" 3-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 925893

MFR# 925893Series Variable Helix End Mills for Aluminum Alloys - Corner Radius; Material Specific End Mills

$37.01List $42.46 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

The Harvey Tool 925893 is a 0.0930 3-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 1-1/2 overall length. Series Variable Helix End Mills for Aluminum Alloys - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Corner radius0.0200
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withHigh Precision Toolholder
Helix styleVariable
Length of cut0.0709
Length typeRegular
Material applicationAluminum; Cast Iron; Steel; Stainless Steel; Wood; Composite
Material removal typeRoughing & Finishing
Mill diameter0.0930
Mill diameter tolerance0.0005 to -0.0005 in
Number of flutes3
Overall length in1-1/2
Overall length tolerance0.0100 to -0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
