Harvey Tool

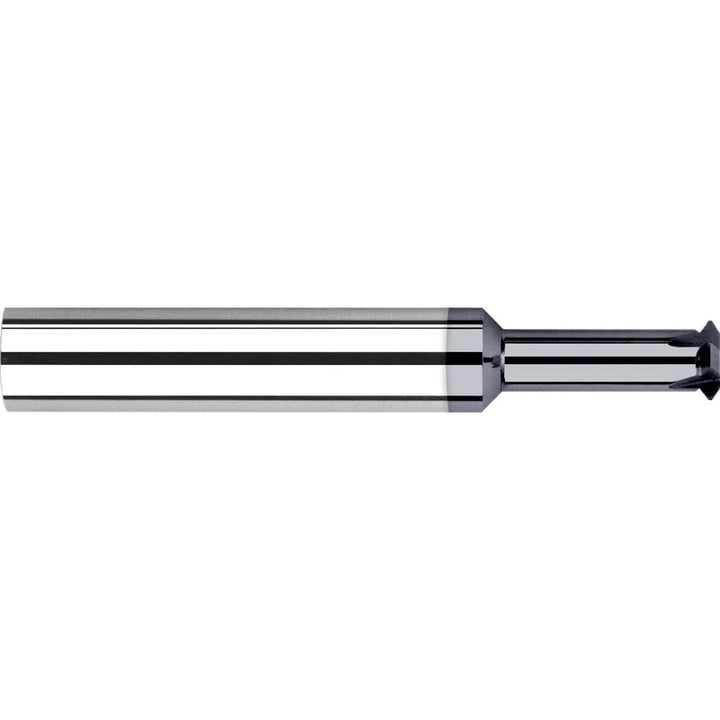

#10-24 - #10-36" Single Profile Thread Mills - Harvey Tool 930340-C6
MFR# 930340-C6
$164.13List $191.62
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
CoatingAlTiN Nano
Description
The Harvey Tool 930340-C6 single profile thread mills.
Specifications
Coating finishAlTiN Nano
Cutting diameter0.1350
MaterialSolid Carbide
Maximum threads per inch36
Minimum threads per inch24
Neck diameter0.0860
Neck length0.8750
Number of flutes5
Overall length in2-1/2
Shank diameter in1/4
Thread size#10-24 - #10-36
Thread typeInternal; External
