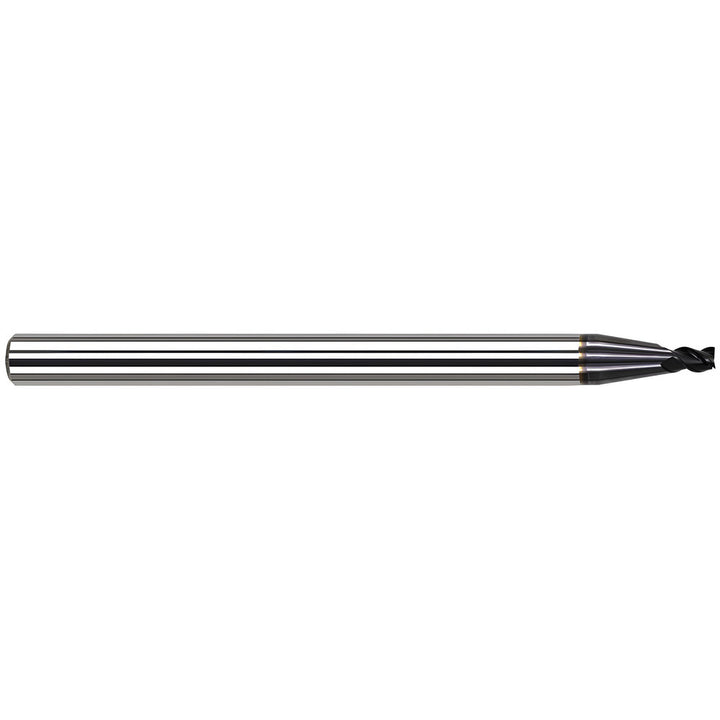

0.0930" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 936493-C6

MFR# 936493-C6Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills

$44.94List $52.47 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 936493-C6 is a 0.0930 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1-1/2 overall length. Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0050

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut0.2790

Length typeRegular

Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy

Material removal typeRoughing & Finishing

Mill diameter0.0930

Mill diameter tolerance0.0005/-0.0005 in

Number of flutes3

Overall length in1-1/2

Overall length tolerance0.0100/-0.0000 in

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
