Harvey Tool

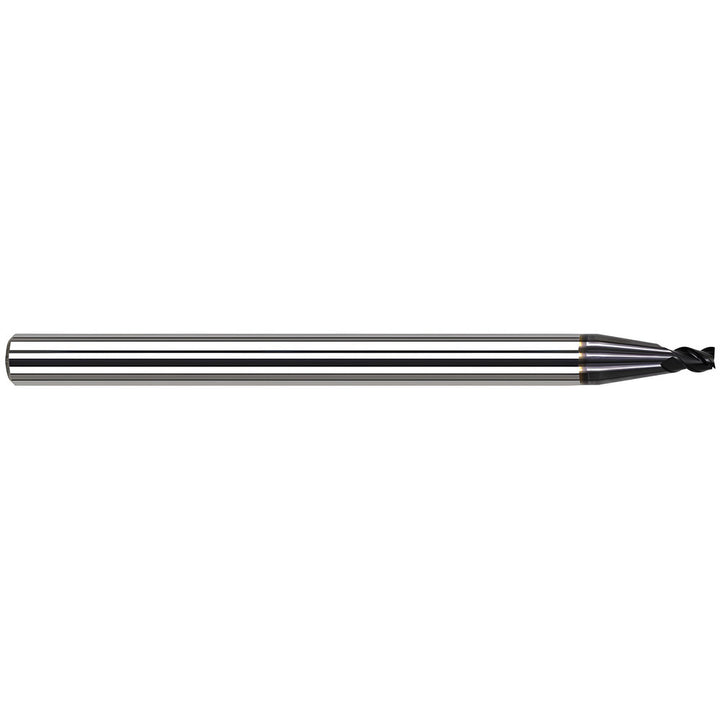

1/4" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 936516-C6
MFR# 936516-C6Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills
$60.79List $69.74
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Harvey Tool 936516-C6 is a 1/4 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 3/4 length of cut, 2-1/2 overall length. Series Variable Helix End Mills for High Temp Alloys - Corner Radius; Material Specific End Mills.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0050
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in3/4
Length typeRegular
Material applicationCast Iron; Steel; Stainless Steel; Hard Alloy
Material removal typeRoughing & Finishing
Mill diameter in1/4
Mill diameter tolerance0.0000/-0.0020 in
Number of flutes4
Overall length in2-1/2
Overall length tolerance0.0100/-0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
