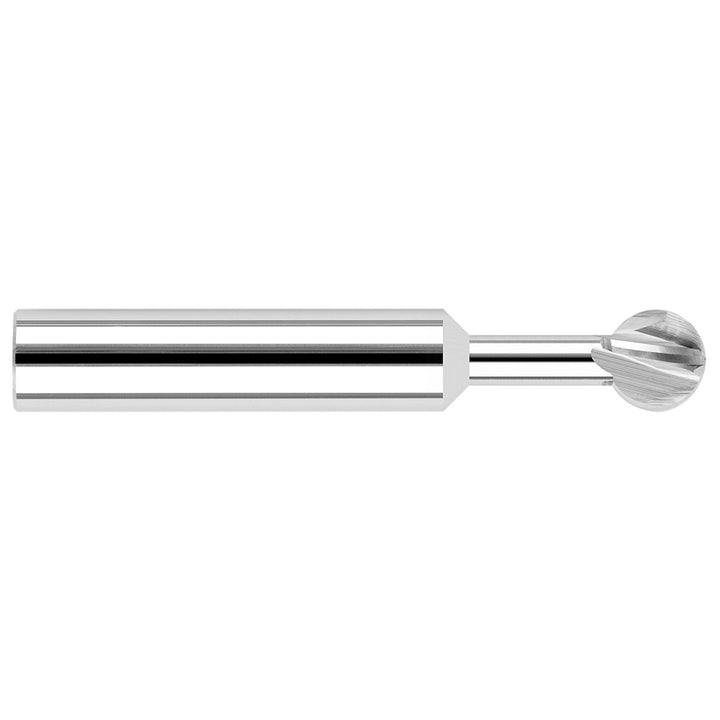

1/16" 2-Flute Solid Carbide Undercutting End Mill - Harvey Tool 940062

Harvey Tool

1/16" 2-Flute Solid Carbide Undercutting End Mill - Harvey Tool 940062

MFR# 940062

$74.34List $86.79 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Harvey Tool 940062 is a 1/16 2-flute Solid Carbide undercutting end mill. 1-1/2 overall length.

Specifications

Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut0.0578
Mill diameter in1/16
Neck diameter0.0240
Neck length0.1875
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Single or double endSingle
Variable helixNo
Variable indexNo
Wrap angle degrees300
