Harvey Tool

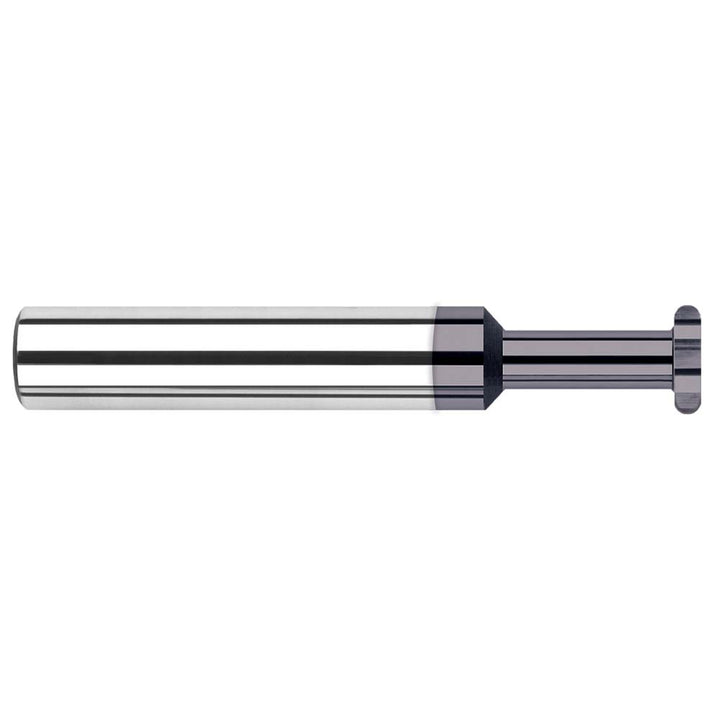

Woodruff/Keyseat Cutters & Sets - Harvey Tool 944439-C3
MFR# 944439-C3
$158.02List $181.28
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.5/16
CoatingAlTiN
Description
The Harvey Tool 944439-C3 woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron.
Specifications
Coating finishAlTiN
Connection typeShank
Corner radius0.0394
Cutter diameter in5/16
Cutter materialSolid Carbide
Cutting width in5/64
Neck diameter0.1560
Neck length0.5000
Number of teeth6
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in5/16
Tooth configurationStraight
Weldon flatNo
