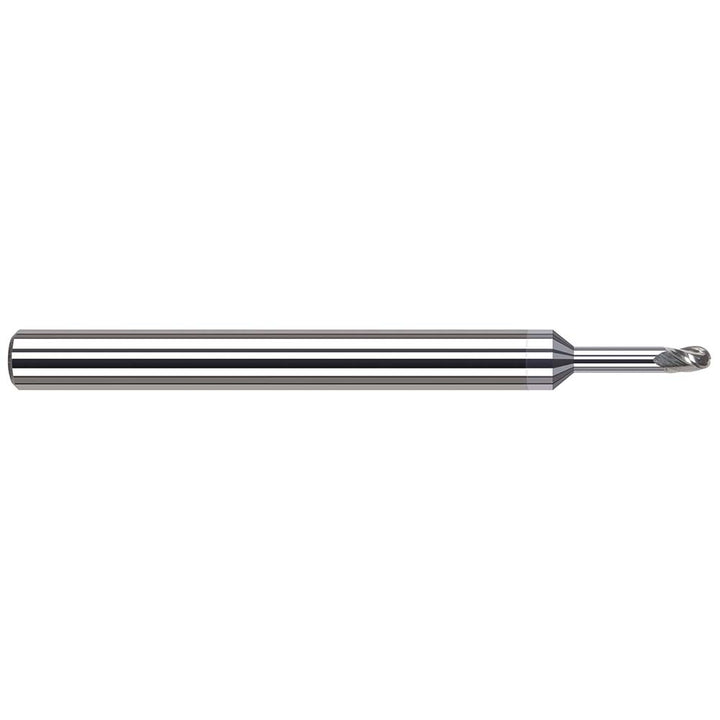

1/16" 3-Flute Solid Carbide Ball End Mill, TiB2 - Harvey Tool 947062-C8

Harvey Tool

1/16" 3-Flute Solid Carbide Ball End Mill, TiB2 - Harvey Tool 947062-C8

MFR# 947062-C8Series Variable Helix End Mills for Aluminum Alloys - Ball - Long Reach, Stub Flute, Material Specific End Mills

$67.27List $71.60 Save 6%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes3
MaterialSolid Carbide
CoatingTiB2

Description

The Harvey Tool 947062-C8 is a 1/16 3-flute Solid Carbide (Carbide) ball end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 3/32 length of cut, 2-1/2in overall length. Series Variable Helix End Mills for Aluminum Alloys - Ball - Long Reach, Stub Flute, Material Specific End Mills.

Specifications

ChipbreakerNo
Coating finishTiB2
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle42
Helix styleVariable
Length of cut in3/32
Length typeStub
Manufacturers catalog number947062-C8
Material gradeCarbide
Material removal typeRoughing
Mill diameter in1/16
Mill diameter tolerance+0.0005/-0.0005 in
Neck length in7/32in
Nose radius0.0310
Number of flutes3
Overall length in2-1/2in
Primary workpiece materialNon-Ferrous Metal
Reach length in5/16
Shank diameter in1/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixYes
Variable indexNo
