0.0620" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 953562-C3

Harvey Tool

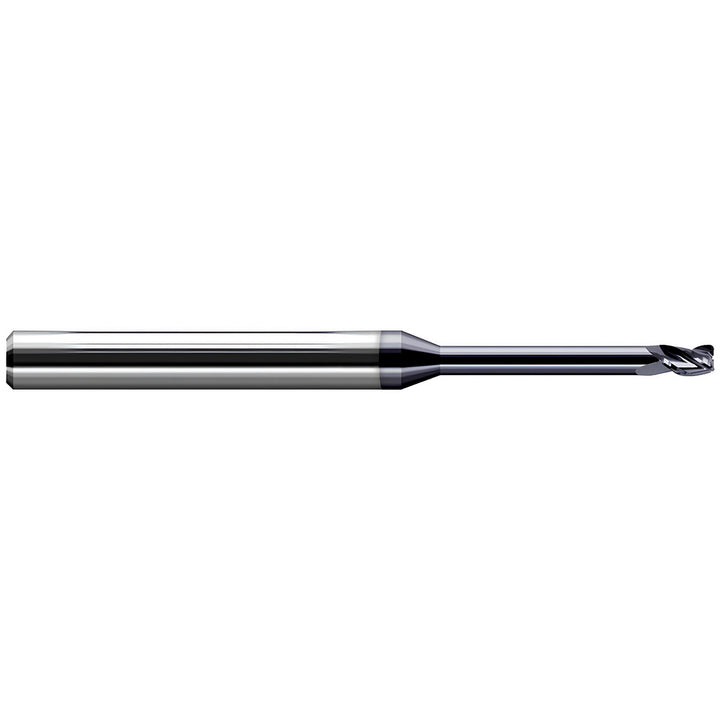

0.0620" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 953562-C3

MFR# 953562-C3Series Miniature End Mills - Corner Radius - Long Reach; Stub Flute; Miniature End Mills

$66.84List $76.67 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 953562-C3 is a 0.0620 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 3/32 length of cut, 2-1/2 overall length. Series Miniature End Mills - Corner Radius - Long Reach; Stub Flute; Miniature End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0200
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut in3/32
Length typeExtended
Material applicationNon-Ferrous Metal; Cast Iron; Steel; Stainless Steel; Composite
Material removal typeRoughing & Finishing
Mill diameter0.0620
Mill diameter tolerance0.0005/-0.0005 in
Number of flutes3
Overall length in2-1/2
Overall length tolerance0.0100/-0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO
Reach length in5/16
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
